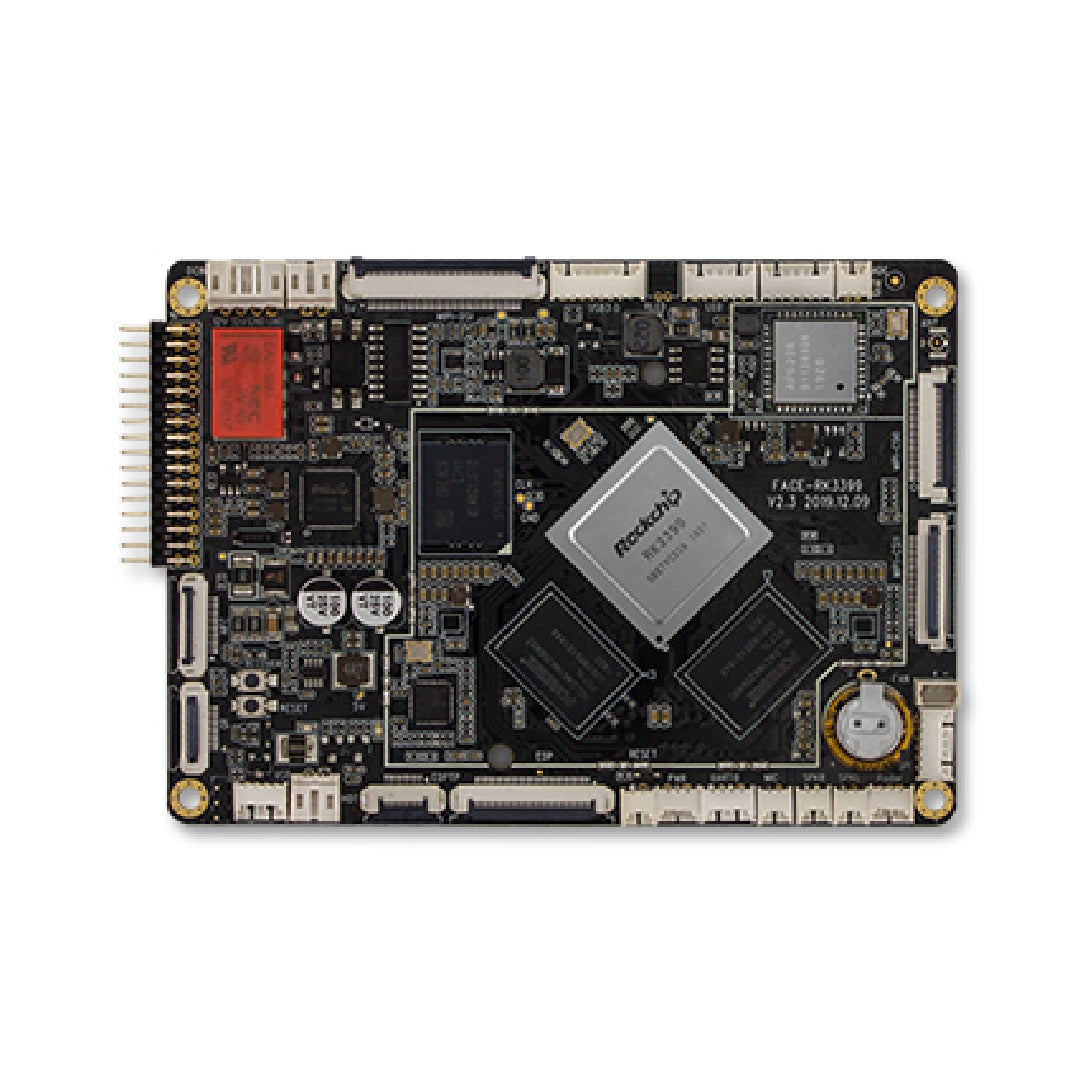

Face-RK3399 Al Main Board

Face-RK3399 Al Main Board
Face-RK3399 is small-scale and with strong face recognition performance, supports multiple face recognition algorithms and various recognition modes. Its rich peripheral interfaces can carry all kinds of peripheral equipment of gate, and meets the application needs of access control, attendance and paying with faces. It also can provide one-stop solution service to help projects land quickly.

"Server-level" Strong Processor
Uses Rockchip six-core 64-bit "server-level" processor, frequency up to 1.8 GHz, integrates quad-core Mali-T860 GPU. It supports multi-format video coding and decoding, and has better processing performance.

Efficient Identification And High Accuracy
Supports various face recognition algorithms smoothly, and the response to detection speed is efficient. Recognition speed is less than 200 ms and recognition accuracy is more than 99.77%.

Support Multiple Recognition Modes
Maximum supports identify 100,000 face database and multiple recognition modes(1:1, 1: N, M: N) to realize multi-person recognition and detection at the same time easily.

ID Recognition, High Accuracy
It supports NFC/IC and ID card reading module, which can identify IC card and ID card accurately. It can easily realize the functions of face verification, access control, time attendance and others.

QR Code Recognition, High Efficiency
It supports the function of QR Code, one-dimensional (1D bar code) identification, which can quickly identify all kinds of QR code and 1D bar code to meet various application needs. It is suitable for scanning mobile payment, commodity barcode, express delivery, warehousing, etc.

Carry Mainstream Equipment
Face-RK3399 Al main board can be equipped with a variety of peripherals, as well as the industry's mainstream cameras (binocular, structured light, monocular), the MIPI/eDP display (5 ° /7" / 8 °/ 9.7° / 10.1" / 13.3" /15.6" *), ID/IC card reader, barcode scanner, fingerprint reader, radar distance sensor, condenser microphone, dual-channel speaker, 4G/3G LTE module, light sensor module, etc.

Small-scale And High-performance
Face-RK3399 with beautiful and compact layout, the size is only 103mm x 74mm. It saves more valuable space to be embedded in various devices easily.

Form Face Recognition Machine
Equipped with mainstream cameras of industry (binocular, structured light, monocular), enclosure, display screen and so on, can form a high-performance face recognition machine quickly.

Support For Multiple OS
It supports Android, Ubuntu multiple operating system, the performance is stable and reliable.

Equipped with Management System
Equipped with face recognition program (APK), PC background management software and mobile phone management software (WeChat APP). They can be directly applied to the project by matching the whole machine.

Open Source
Open supporting SDK secondary development source code, face recognition API, development tutorials, development tools, and other materials to meet user's needs.

Rich Extension Interfaces
Face-RK3399 Al main board with rich extension interraces, such as Wiegand interface(2bbit)/ R5485(switching via relay), LED driver interface 100M Ethernet. USB 3.0. MiPi which is convenient  external devices.

Applications
It can be used in Face recognition security gate, Industry PC, Smart robot, Industry computer, commercial display equipment, vending machine, etc
