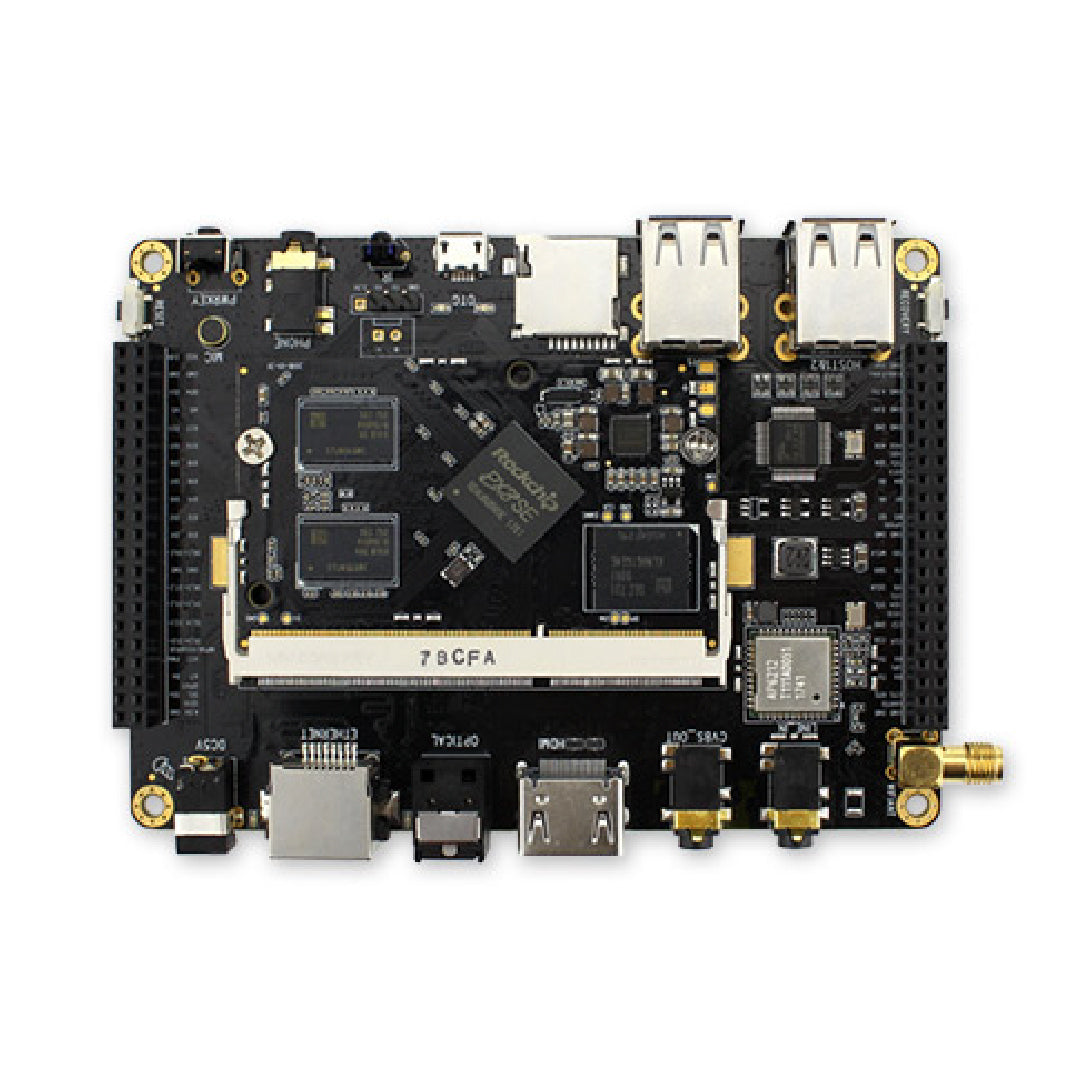

Firefly-PX3-SE Industrial Open Source Main Board

Firefly-PX3-SE Industrial Open Source Main Board
With PX3-SE quad-core processor, frequency up to 1.3GHz, industrial-grade stability, operating temperature -20°C ~ 80 C. Fire- fly-PX3-SE uses backplane and core board combination, core board with a variety of configuration, easy to control costs, low cost and excellent performance make the product very cost-effective.

Excellent Process Capacity
Firefly-PX3-SE uses Rockchip industrial-grade quad-core processor PX3-SE, frequency up to 1.3GHz, build-in graphics processor Mail- 400MP2 and 2D accelerator, supports OpenGL ES1:1/2.0, H.265 hardware decoding and 1080P play.

Industrial-grade Stability
Main board operating temperature -20 C ~ 80C, 7x24 hours stable operation, the gold finger of core board is anti-corrosion, double stud fixed, solid and reliable.

Variable Configuration Controllable Cost
Firefly-PX3-SE uses backplane and core board combination, provides a variety of core board configurations, Minimum configuration 256M+4G can run Linux industrial applications smoothly,easy to control product costs, make products more market competitiveness.

A Variety of Network Connection
Equipped with 2.4GHz Wi-Fi, Bluetooth 4.0 and Gigabit Ethernet, with powerful network expansion and transmission capabilities.

Open-source Code, Personalized Products
Provide SDK source code, development tools, tutorials, technical documents,etc, the second development more convenient and speed up product development process.

Rich Interfaces, Easy to add Peripherals
Firefly-PX3-SE with rich expansion interfaces, including MIPI, LVDS, PWM, SPI, UART, ADC, GPIO, I2C, I2S, etc.

Application
Firefly-PX3-SE can be used for a variety of industry products directly.
