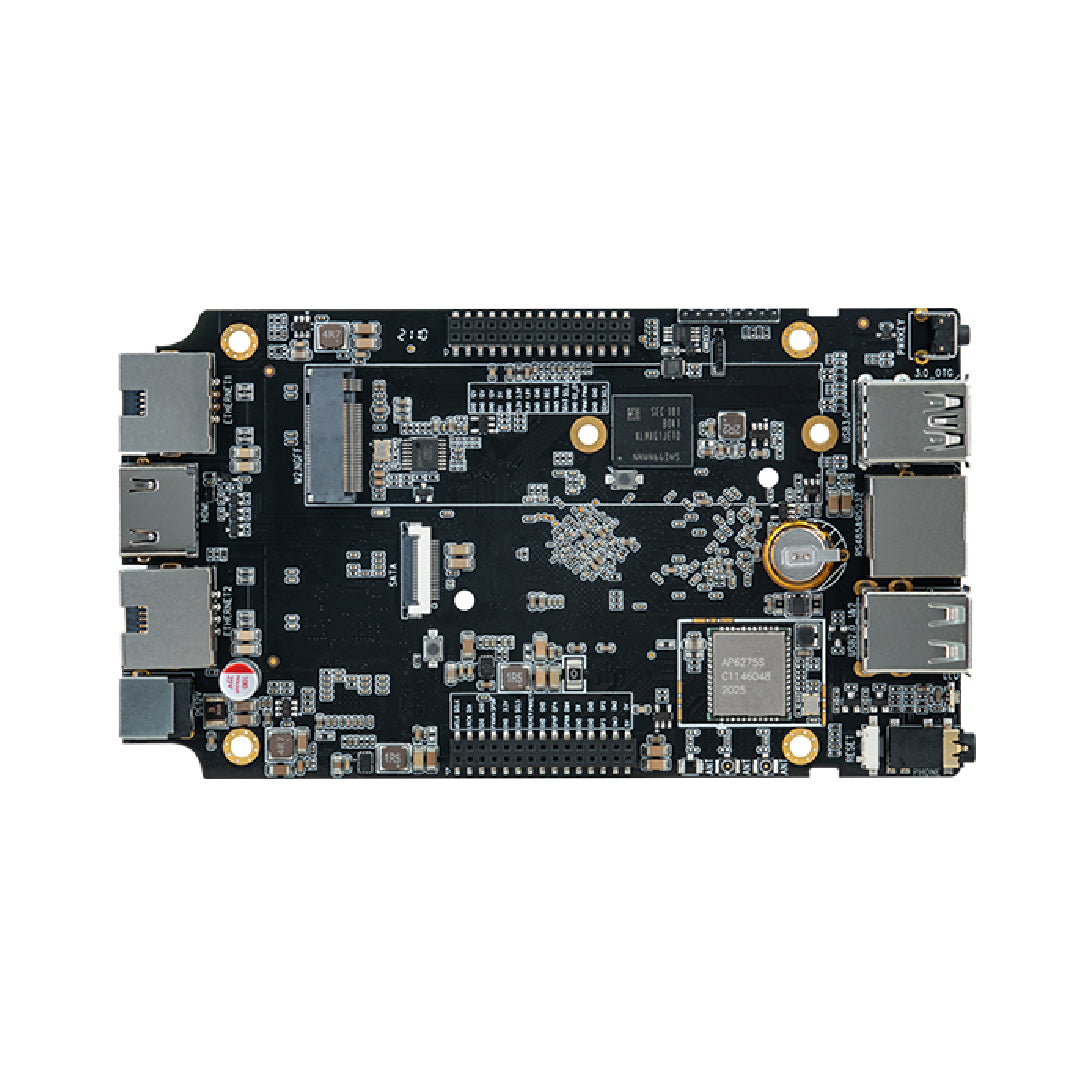

ROC-RK3568-PC - Quad-Core 64-Bit Mini Computer

ROC-RK3568-PC Quad-Core 64-Bit Mini Computer
The mini computer supports 8G large RAM. M.2 and SATA3.0 interfaces enables expansion with large hard drives. Providing dual Gigabit Ethernet oorts. If SuDoorts WiF6 wireless transmission. Control Port can oe conmected with R5485/ R5232 devices. Various systems and boot ways are supported - with the dedicated application programs and forums, geek fun is endless.

RK3568 quad-core 64-bit processor
RK3568 quad-core 64-bit Cortex-A55 processor, with brand new ARM v8.2-A architecture, has frequency up to 2.0GHz- the efficiency is greatly improved. With 22nm lithography process, it features low power consumption and high performance.

8GB large RAM, all-data-link ECC
It supports up to 8GB RAM, with up to 32Bit width and frequency up to 1600MHz. It supports all-data-link ECC, making data safer and more reliable, and meeting the requirements of running large-memory products application.

Integrated co-processors
It is integrated with dual-core GU, high-performance VP and high-efficiency NPU. The GPU supports OpenGL ES3.2/2.0/1.1, Vulkan1.1. The VPU can achieve 4K 60fps H.265/H.264/VP9 video decoding and 1080P 100fps H.265/ H.264 video encoding. The NPU supports one-click switching of mainstream frameworks like Caffe/TensorFlow.

Various display interfaces
With MIPI-CSI x2, MIPI-DSI ×2, HDMI2.0, EDP video interfaces, it can support up to three screen output with different display. The built-in 8M ISP supports dual cameras
and HDR. Video input interface can be connected to an external camera or multiple cameras. The board can be used in NVRs, intelligent terminals, multimedia
advertising players and other products.

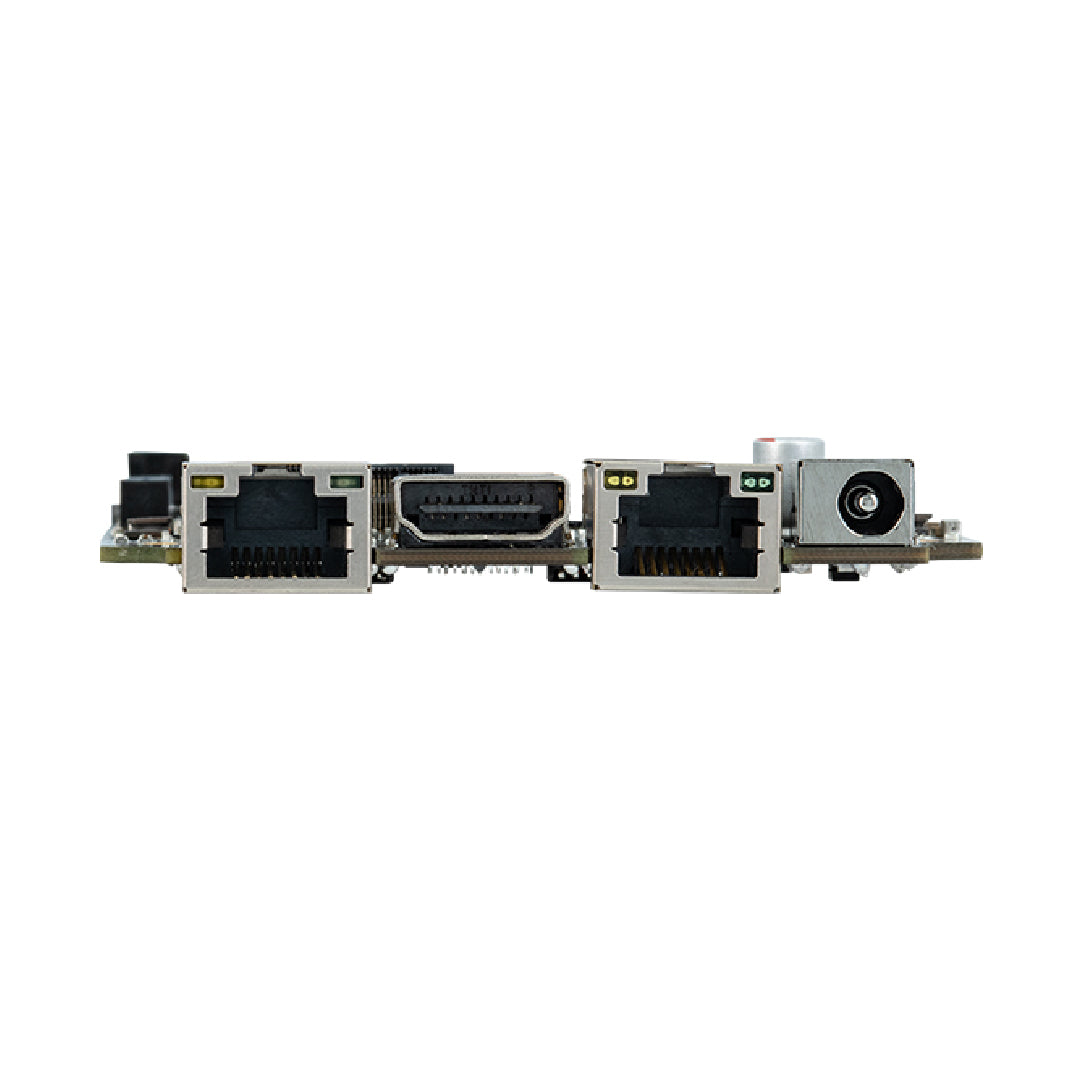

Dual Gigabit Ethernet ports & Powerful wireless network
WiFi 6 (802.11ax) wireless network communication is supported, with the maximum bandwidth reaches 160MHz and the highest soeed reaches 9.6Gbps - the speed is greatly improved than WiFi 5. And, WiFi 6 delivers lower packet loss retransmission rate making the transmission more stable and secure.

Onboard M.2 and SATA3.0 interfaces
The onboard M.2 PCIe3.0 and SATA3.0 interfaces can be connected with an M.2 NVMe SSD and a 2.5-inch SATA SSD/HDD respectivelv. owning the advantages of high-speed.

RS485 and RS232 interface extension
The confiqured Control Port (RI45) provides one RS485 and two R5232, through which you can connect to external devices with R5485/RS232 serial port to control more external devices flexibly and create more fun ways to play.

Configured with Geek System
Station Os (Fireflv Geek 5vstem) brinas you living room olaving experience. Just connect the TV or displav at home to build a home entertainment center to eniov movies and games with high-definition and big-screen viewing.

Various systems and boot ways supported
It supports to uograde to Android, Ubuntu, Buildroot + OT. Station OS and other systems, and supports to boot the system via TF card, U disk EMMC, etc.

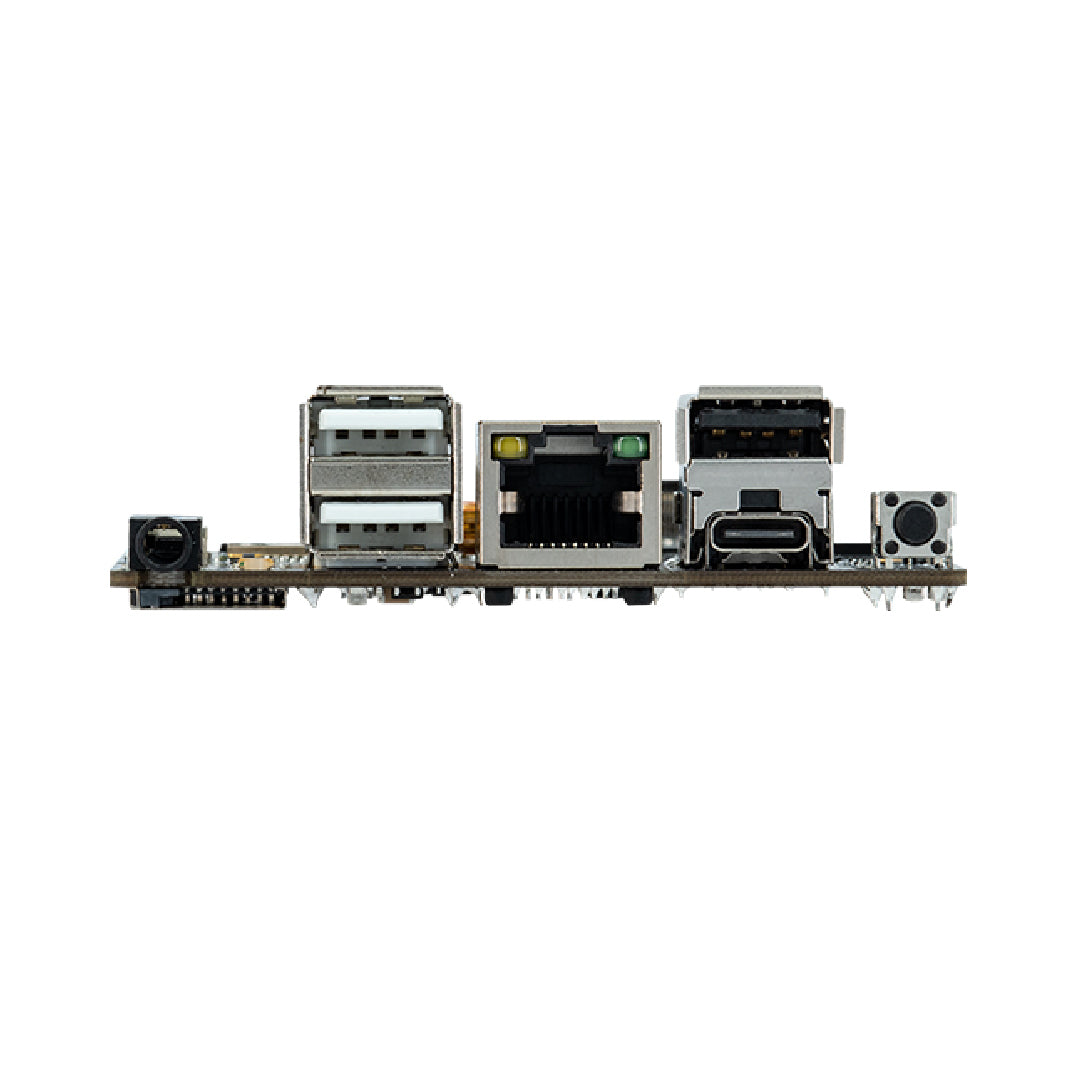

A variety of interfaces
With RS485, RS232 x2, HDMI2.0, USB3.0, USB2.0 x2, Type-C and other interfaces, it can be directly used for external device control and expansion.grammina learnina, creative development all easy.

Abundant resources for customization
A complete SDK, development documents, examples, technology documents, tutorials and other resources are provided for the users to make a further customization.
