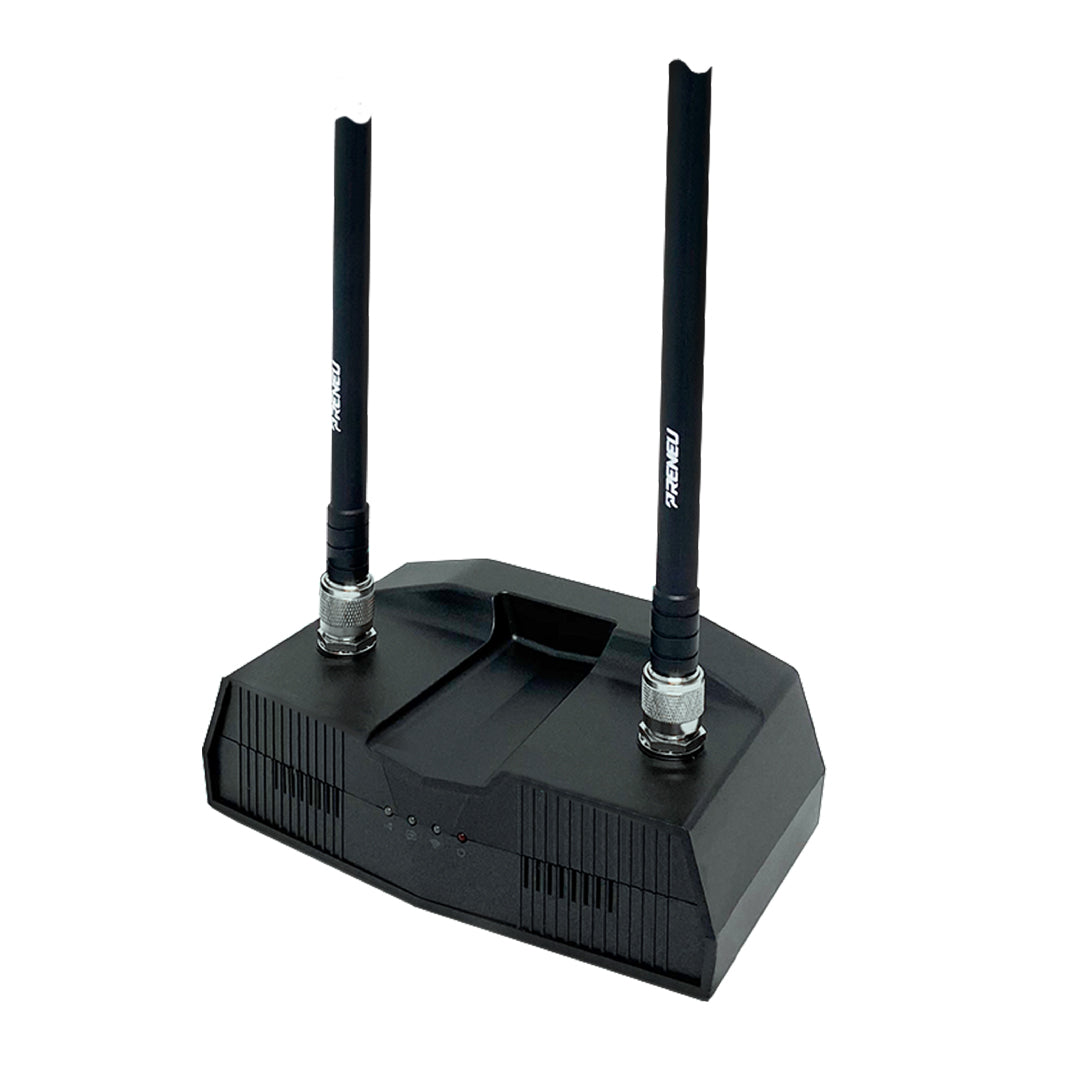

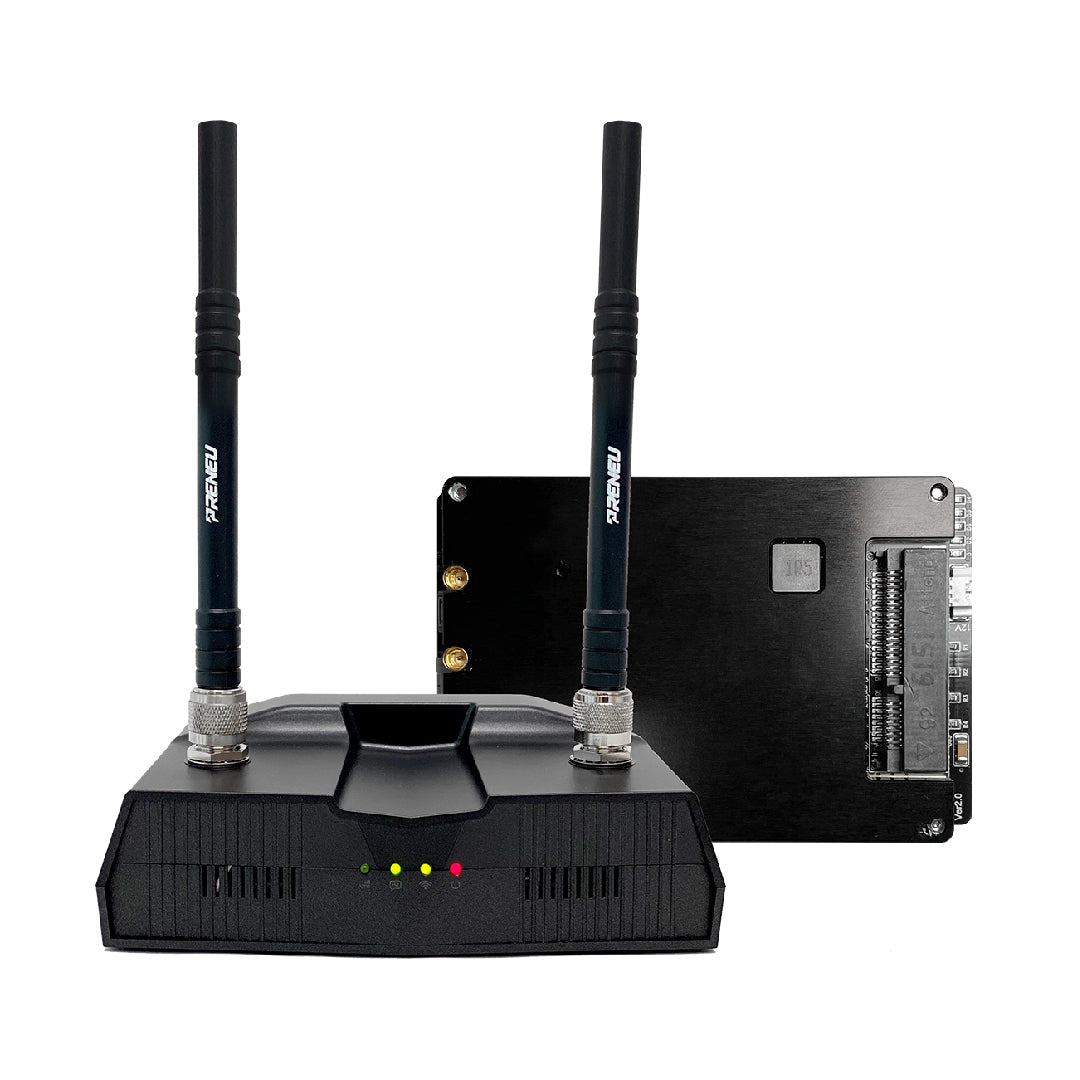

DroneIT Datalink

DroneIT Datalink

€3.305,95 EUR
€3.305,95 EUR
Sale Sold out
Tax included.

DRONEiT-DL is the datalink for drones and transmits videos and data via long distance (up to 5 km) in compliance with local Wireless Telegraphy Act. Can Manage up to 20 Nodes (mobile and static) in a mesh network to provide a robust and resilient network

  • 2.4 GHz, 5.8 GHz dual band support
  • MIMO 2x2 Antenna Outdoor Type
  • 10/100/1000 Base-T 1Port Ethernet
View full details

  • HD Video Streaming

    Real-time HD Video Streaming using 2.4 / 5.8Ghz Bandwidth Communication up to 20km LOS Distance using an amplifier.

  • UAV Optimized Interface

    GH type Standard Connector for FC Micro USB port for easy connection to GCS AES encryption Multiple Serial Ports.

  • Wireless Communications

    Video Data, Flight Data, and Sensor Data 2.4Ghz / 5Ghz Selective Bandwidth Support Optional LTE Communications.

  • Wireless

    Standards
    IEEE802.11a/n/h/s for Wireless LAN
    IEEE802.11i for Wireless Security
    IEEE802.3u for 10/100/1000T(X) Full Duplex

    Operation Mode
    Access Point, Bridge

    Wireless Standard
    IEEE802.11a/b/g, 802.11n

    Frequency Range
    2.4GHz, 5.8GHz

    Rate
    Optimal 20Mbps, Max 300Mbps

    Modulation
    11n (HT20/HT40) : MCS0 ~ MCS15 (OFDM)

    Sensitivity
    5.8 GHz, OFDM  6Mbps : -90dBm, 54Mbps : -73dBm

    Bandwidth
    Ability to configure 20 and 40MHz channel bandwidth, Transmit Power Control(TPC)

    Device Management
    Administrator ID/PW, Station & AP Associated Information System Information, Telnet/SSH Server SupportWeb-based Configuration, Upgrade through HTTP/TFTP Event Log (WEB Interface), Factory Default

  • Network

    Interface
    2x Serial Ports, 1 x micro USB Port(USB to Serial)
    2x USB2.0 Ports, 1 x LTE PCI-E Slot, 1 x USIM Slot
    1x Ethernet 10/100/1000BASE-T(RJ-45) Auto neg. speed

    LAN/WAN
    IP, Subnet, Gateway

    DHCP
    Server/Client

    Protocol
    TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, ARP, DNS

    Security
    SSID Protection, 64bit-128bit WEP Encryption, 802.11i, AES and/or TKIP, WPA2.0(with Radius Server or Pre- Shared Key), WPA, 802.1x Authentication, IP/MAC Filtering(Allow, Deny), HTTPS(SSL) Encryption, Password Protection

    Operating Range
    Max 20Km at LOS

  • General

    Operating Temperature
    -20°C ~ +70°CHumidity5% to 95% (non-condensing)

    Power
    USB-C(1.5A) or DC Jack 5V

    Dimension
    W100 x H90 x D20 mm

    Weight
    100 g (PCB Only)

  • Antenna Receiver

    Frequency Range
    5150-5850Ghz

    Beamwidth
    Vertical 7º Horizontal 360º

    Gain
    12 dBi

    Impedance
    50 Ω

    Dimension
    Φ15x490 mm

    Weight
    1ea 200g

  • Antena Sender

    Frequency Range
    5150-5850Ghz

    Type
    Omni Direction

    Gain
    6dBi

    Impedance
    50 Ω

    Dimension
    201mm

    Weight
    1ea 26.96g
