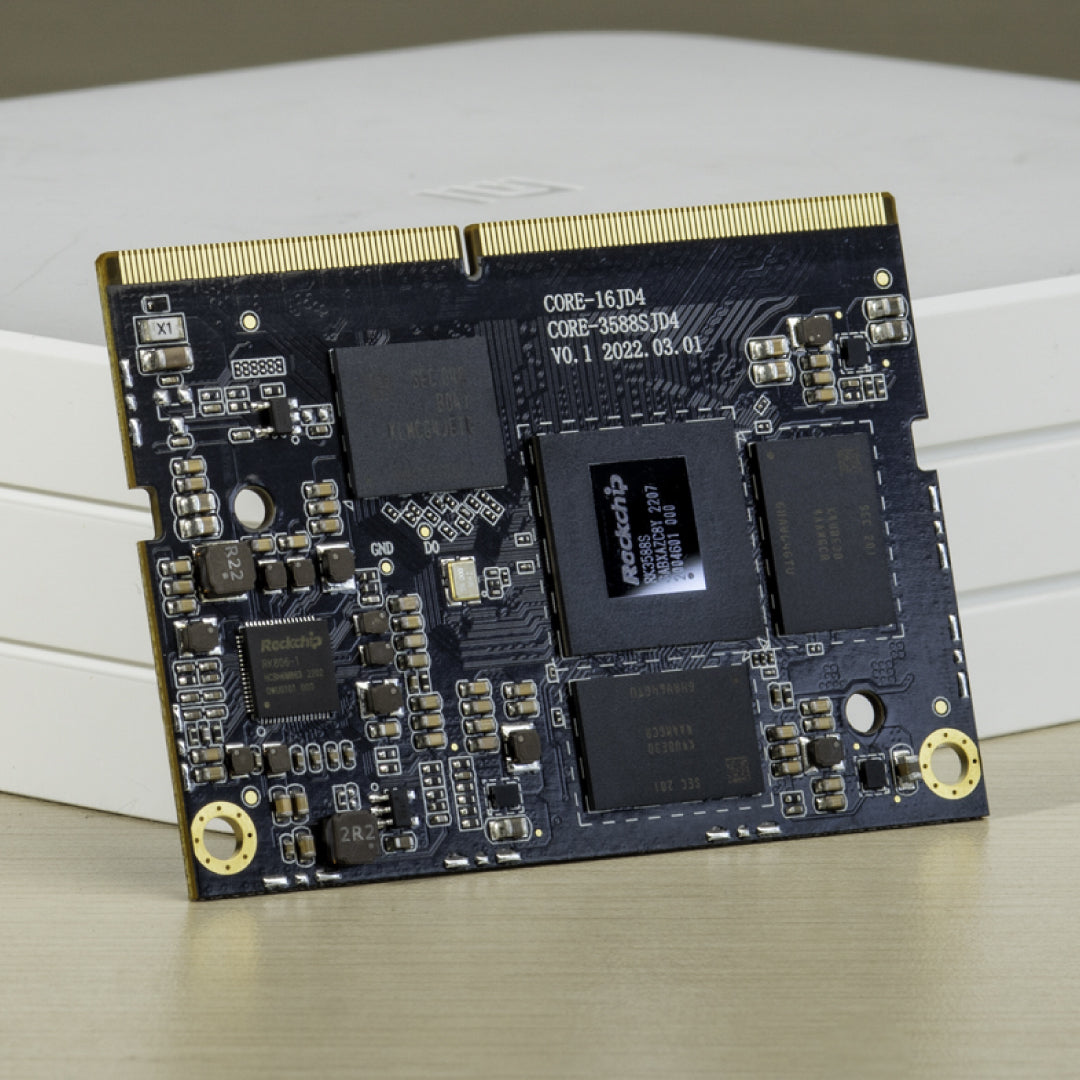

Core-3588S-JD4 - 8-Core 8K Al Core Board

Core-3588S-JD4 - 8-Core 8K Al Core Board

Regular price £499.00 GBP
Regular price Sale price £499.00 GBP
Sale Sold out
Tax included.
Pre-installed Operating System
Storage

8-Core 8K Al Core Board
Powered by Rockchip RK35885 new-gen 8-core 64-bit processor, the core board can be configured with up to 32GB RAM. Capable of 8K video encoding and decoding, it provides abundant interfaces, supporting multiple hard disks, Gigabit Ethernet and dual-band WiFit. It also supports various operating systems. Backplane reference
design is provided for users to make further customization.

8K video encoding and decoding
The core board supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding, and also supports encoding and decoding simultaneously - up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding can be achieved. The strong video encoding and decoding capability makes 8K HD displav and delicate picture qualitv available.

Super-large 32GB RAM
Up to 32GB of super-large RAM can be configured, which exceeds the limit of the previous RAM and delivers a faster response speed. It can meet the application requirements of products with large RAM and large storage.

Multi-channel input and output
It supports HDMI 2.1 (8K), DP1.4 (8K), and dual MIPI-DSI multi-channel video output - up to four-screen output with different displays can be achieved. Dual MIP|-CSI camera input is also supported.

Strong network communication capability
Integrated with PCle/GMAC/SDIO3.0/USB3.0, it can be extended to Gigabit Ethernet, WiFi 6/Bluetooth, 5G/ 4G LTE, enabling network communication have a higher speed.

Multiple hard disks, Massive capacity
PCle2.1 and SATA3.0 interfaces can be connected with multiple SSD/HDD mass storage devices at the same time, making it a reality that the device can be easily expanded with TB storage capacity.

A variety of interfaces
SATA3.0, PCle2.1, I2S, I2C, CAN, UART, SPDIF, SDIO3.0, MIP/-CSI, MIPI-DSI, USB3.0, USB2.0, SPI and GPIO are configured.

High-performance mainboard

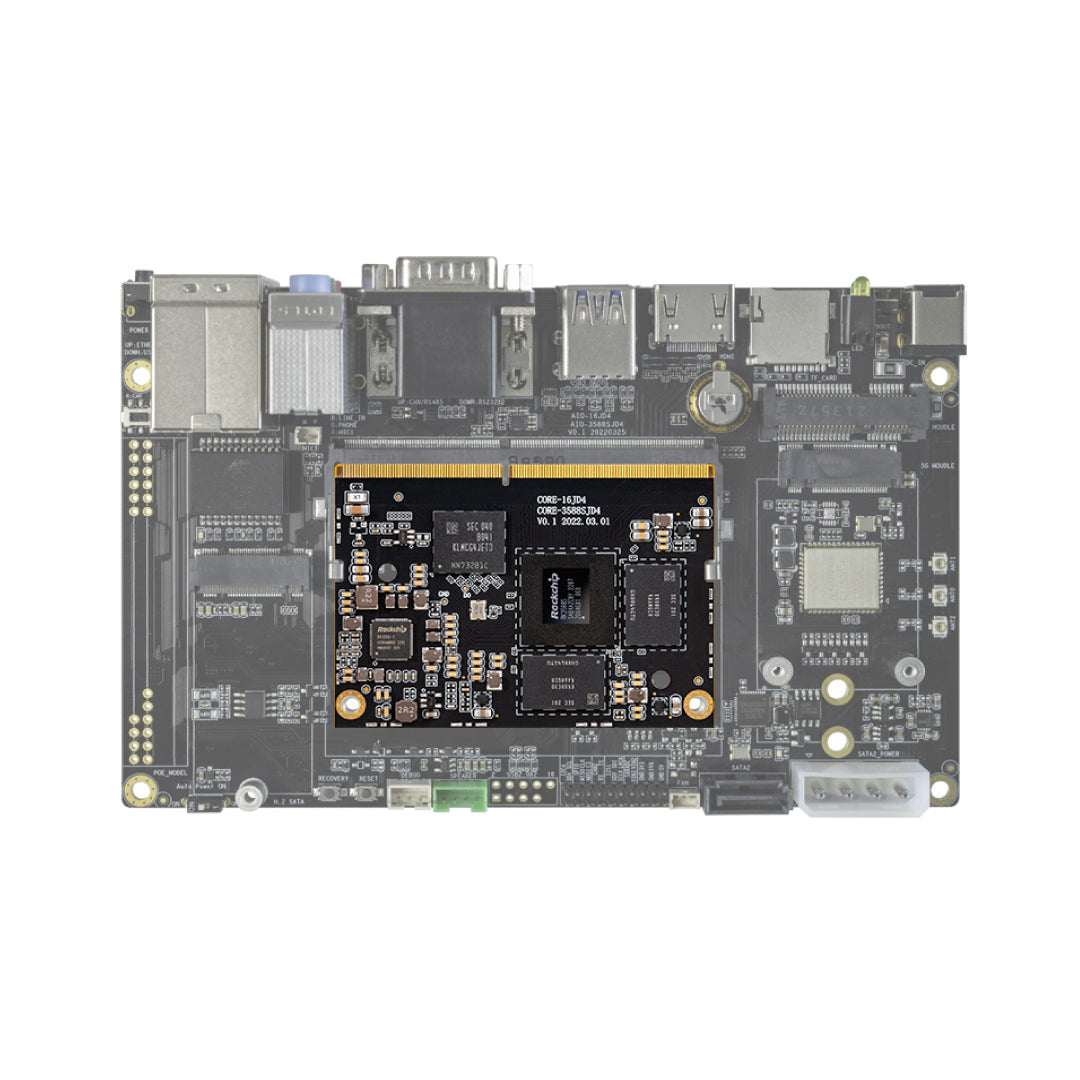

The core board with 260Pin standard SODIMM interface, which is small in size. It can be combined with a backplane to form a complete high-performance mainboard with richer expansion interfaces. So it can be directly applied to various smart products to accelerate their development.

Provide backplane reference design
Backplane reference design and complete technical information are provided, so users can efficiently proceed with secondary development to quickly create independent and controllable products.

Support various operating systems
Android 12.0, Ubuntu Desktop version and Server version, Debian11, Buildroot, Kylin and US are supported. It supports RTLinux, delivering excellent real-time performance. UEFI Boot is also available. The reliable operation provides a safe and stable system
environment for product research and production.

Abundant resources
SDK, tutorials, tech docs and development tools are provided, making development simpler and more convenient.

A wide range of applications
The core board can be widely used in edge computing, Artificial Intelligence, cloud computing, VR/AR, blockchain, smart security, smart home, intelligent retail and smart industry.
