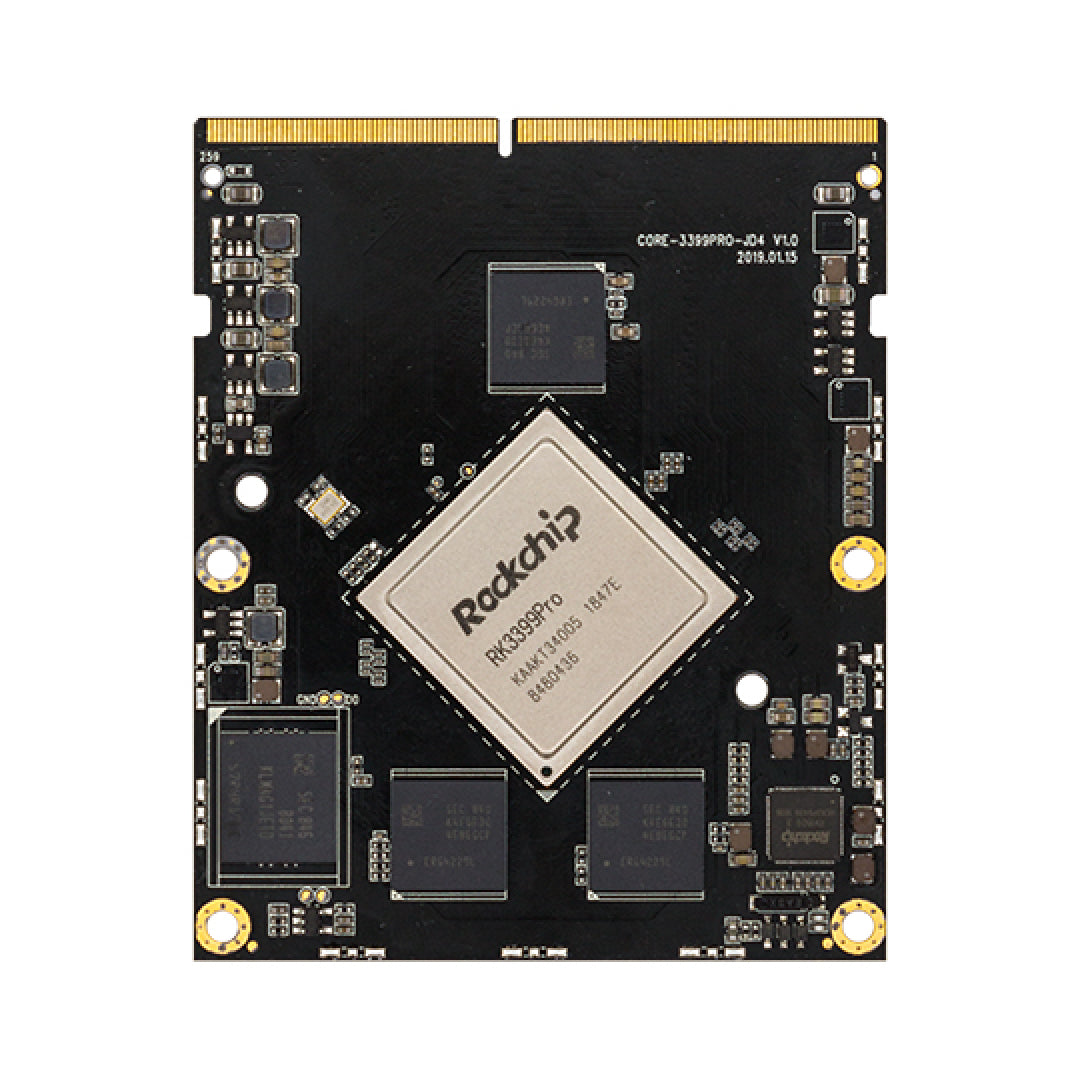

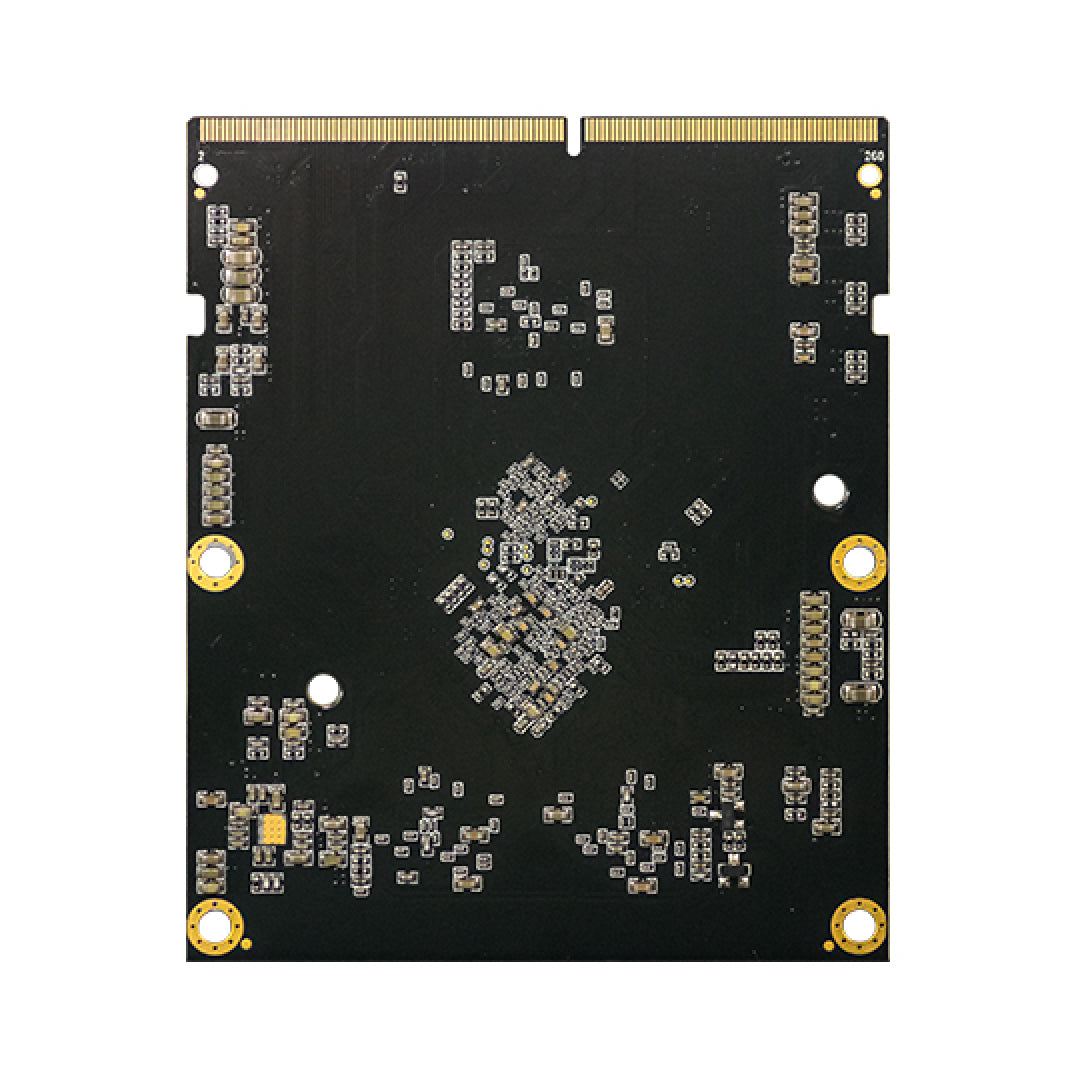

Core-3399Pro-JD4 - High-performance Al Processor RK3399Pro

Adopts the high-performance Al processor RK3399Pro, integrated neural network processor NPU with computing power up to 3.0Tops, and compatible with a variety of Al frameworks. Core-3399Pro-JD4 core board can be combined with the backplane to form a complete industrial application board, which enable it to be applied flexibly on a variety of smart products.

High-performance Al Processor RK3399Pro
Adopts big LITTLE core processor architecture of ARM dual-core Cortex-A72 and quad-core Cortex-A53 at a high frequency as 1.8GHz, integrated Mali-T860 MP4 quad-core graphics processor with powerful general-purpose computing performance.

Al Neural Network Processor NPU
Integrates Al neural network processor NPU, supports 8Bit/ 16Bit operation with computing power up to 3.0Tops to meet various visual and audio Al applications.

Powerful Hardware Decoding Capability
Supports multiple display output interfaces of DP1.2, HDMI 2.0, MIPI-DSI, eDP, dual-screen identical display/dual-screen differential display, supports 4K VP9, 4K 10bits H265/H264 and 1080P multi-format (VC-1, MPEG- 1/2/4, VP8) video decoding, 1080P (H.264, VP8 format) video coding.

Support Multiple Al Framework
Compatible with multiple Al frameworks, supports TensorFlow Lite/Android NN API. Al software tools support import, mapping, and optimization of Caffe / TensorFlow models, allowing developers to use Al technology easily.

Rich Extension Interfaces
Rich in interfaces such as I2C, SPI, UART, ADC, PWM, GPIO, PCle, USB3.0,
12S (supporting 8 digital microphone array inputs).

Form Industrial Main Board
Core-3399Pro-JD4 core board can be combined with the backplane to form a complete high-performance industrial application board, whose expansion interface is more abundant and performance is more powerful. Moreover, it can be directly applied to various intelligent products to accelerate the product landing.

Application
Widely used in Al applications such as cluster server, high-performance computing/storage, computer vision, edge computing, commercial display equipment,
medical equipment, vending machines, industrial computers, etc.
