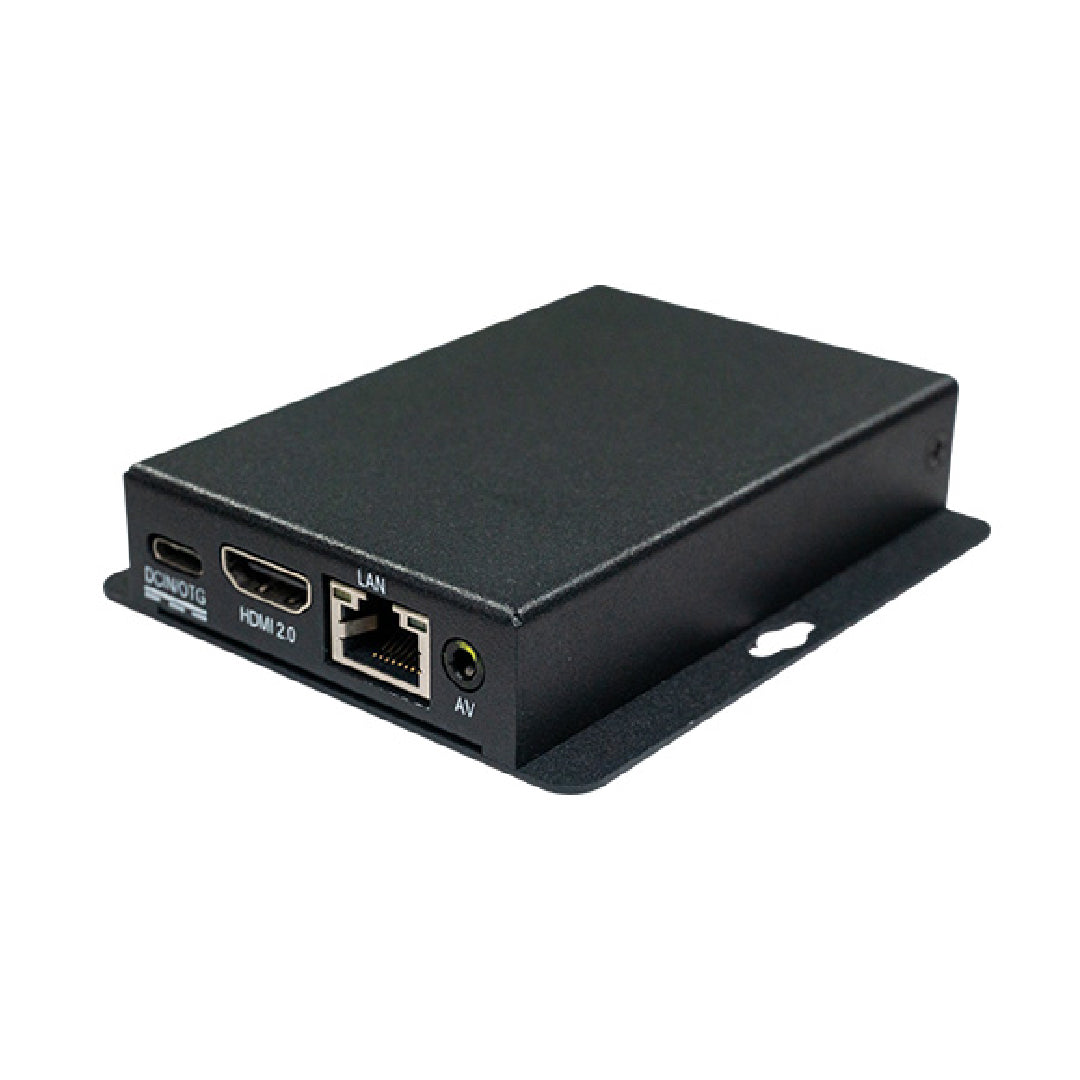

EC-R3566PC Ouad-Core 64-Bit Embedded Computer

EC-R3566PC Ouad-Core 64-Bit Embedded Computer
The embedded computer is equipped with Rockchip quad-core processor RK3566 which is configured with dual-core GPU and high-performance NPU, supporting up to 8G RAM. Providing various interfaces, it is suitable for applications such as smart NVR, cloud terminal, loT gateway and industrial control.

K3566 quad-core 64-bit processor
RK3566 quad-core 64-bit Cortex-A55 processor has frequency up to 1.8GHz - the efficiency is greatly improved. With 22nm lithography process, it features low power consumption and high performance.

8GB large RAM, all-data-link ECC
It supports up to 8GB RAM with up to 32Bit width, and supports all-data-link ECC, making data safer and more reliable, and meeting the requirements of running large-memory products.

Integrated co-processors
It is integrated with dual-core GU, high-performance VP and high-efficiency NPU. The GPU supports OpenGL ES3.2/2.0/1.1, Vulkan1.1. The VPU can achieve 4K 60fps H.265/H.264/VP9 video decoding and 1080P 100fps H.265/ H.264 video encoding. The NPU supports one-click switching of mainstream frameworks like Caffe/TensorFlow.

M.2 interface to expand
The onboard M.2 PCle2.0 interface can be connected with NVMe SSD, owning the advantages of high-speed reading and writing and large storage.

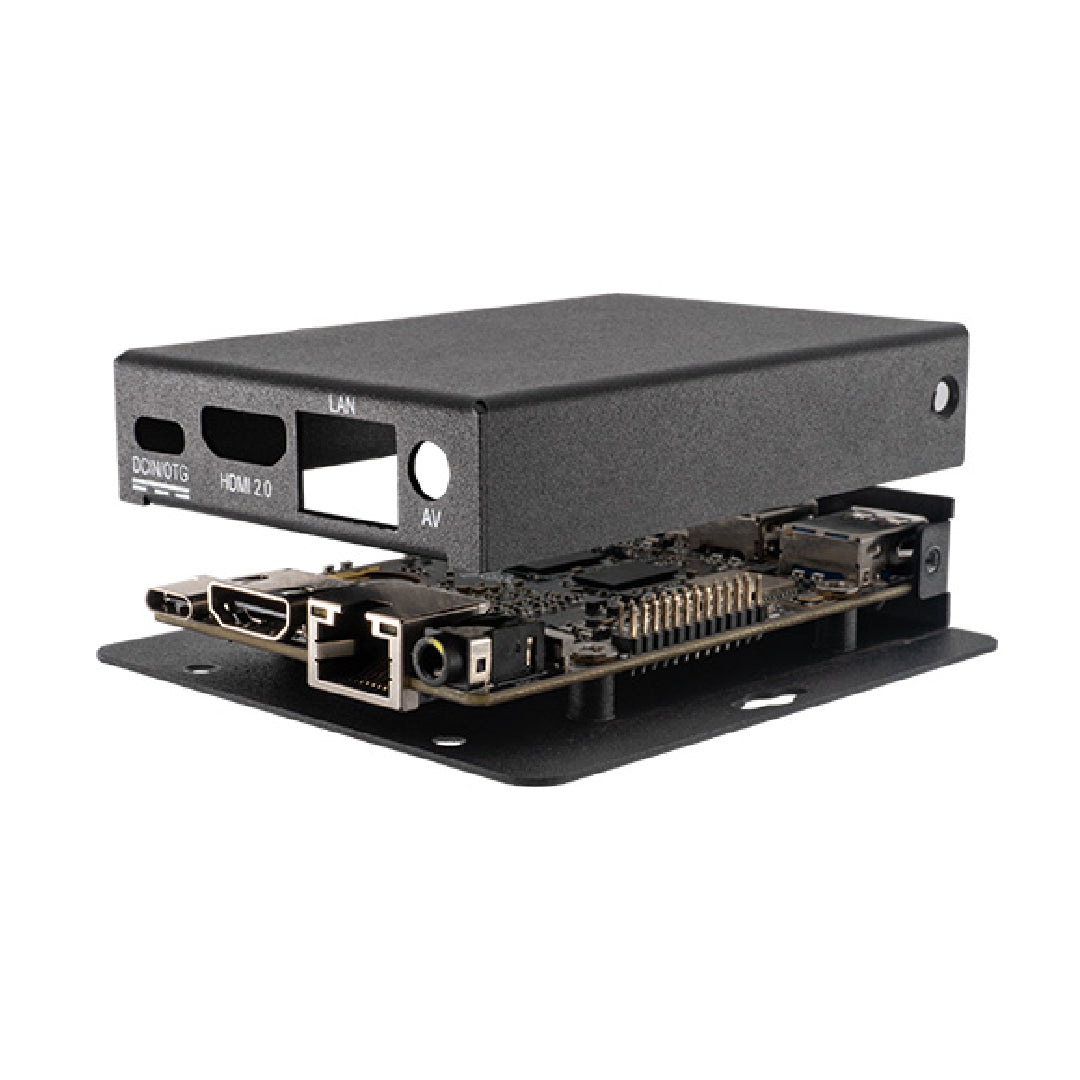

High-quality metal enclosure
Equipped with high-quality metal enclosure, the space-saving computer delivers efficient heat dissipation and can be flexibly embedded in various intelligent devices.

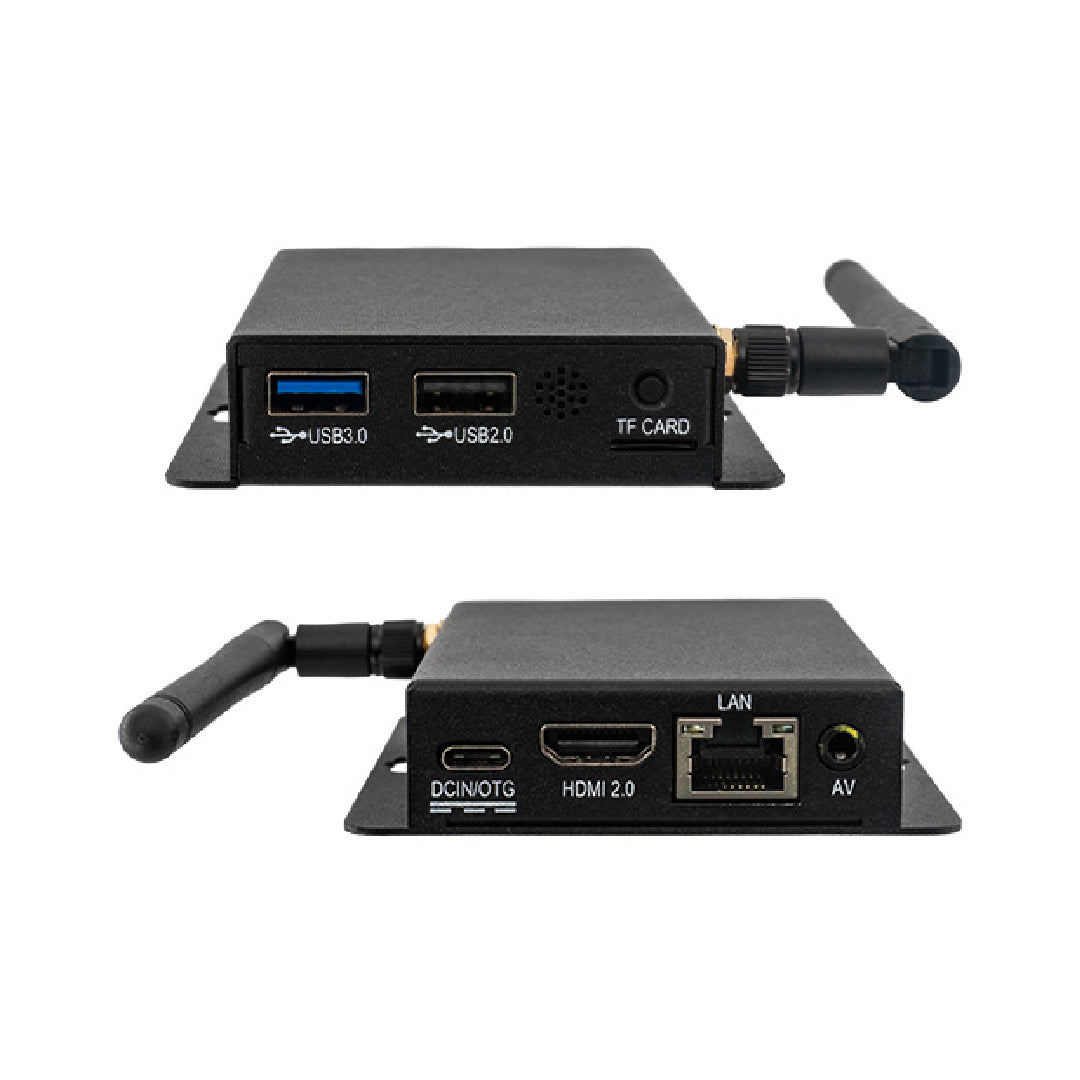

More interfaces for more possibilities
With HDMI2.0, USB3.0, USB2.0 and other interfaces, it can be directly used for external device control and expansion.

Various systems supported
It supports Android, Ubuntu, Buildroot+QT, Station OS and other systems with stable and reliable operation.

Abundant resources for customization
A complete SDK, development documents, examples, technology documents, tutorials and other resources are provided for the users to make a further customization.

A wide range of applications
This computer can be widely used in smart NVRs, cloud terminals, loT gateways, industrial control, edge computing, face recognition gates, NASs, etc.
