ROC-RK3588S-PC -8-Core 8K Al Main Board

ROC-RK3588S-PC -8-Core 8K Al Main Board

Regular price £219.00 GBP
Regular price Sale price £219.00 GBP
Sale Sold out
Tax included.
Pre-installed Operating System
Storage

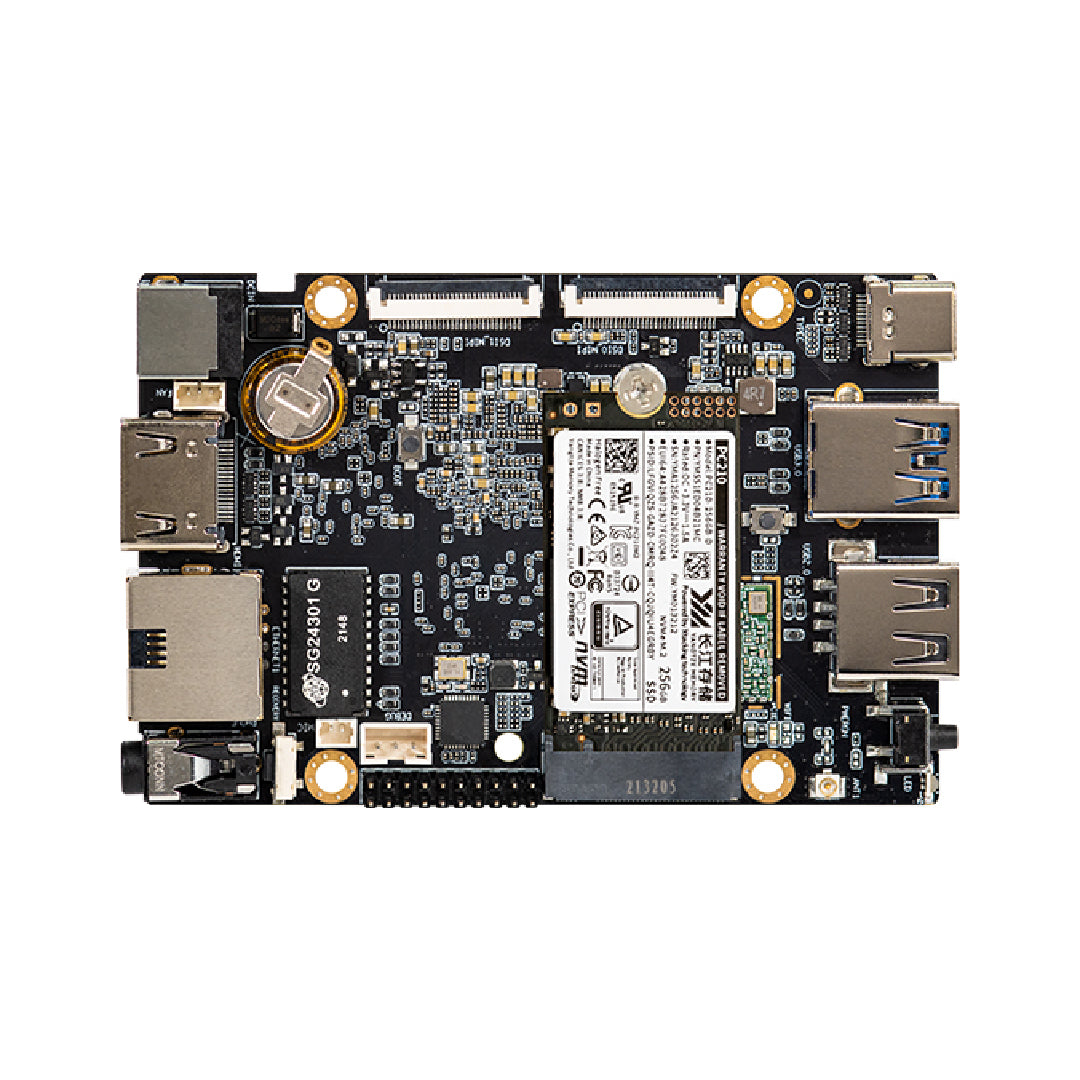

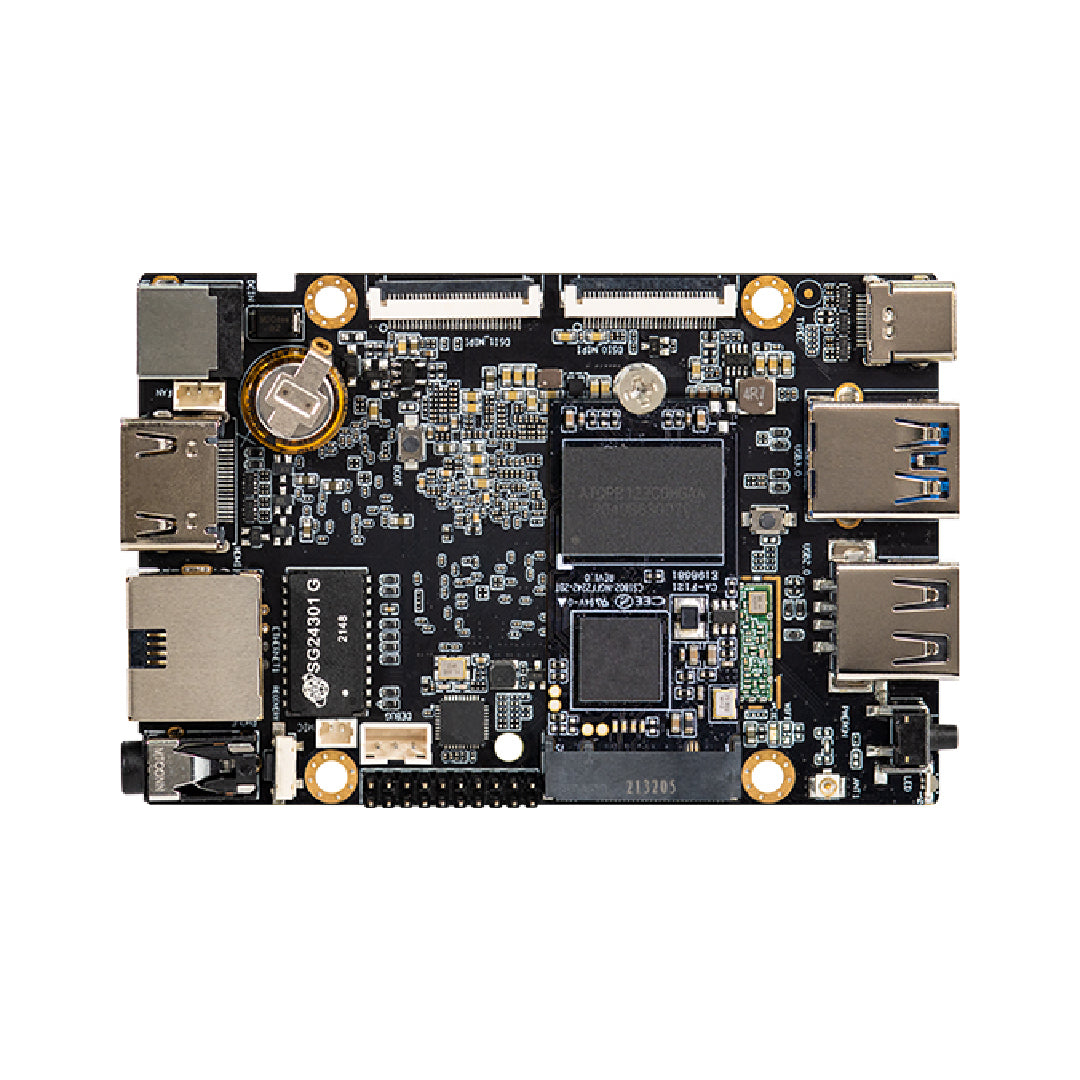

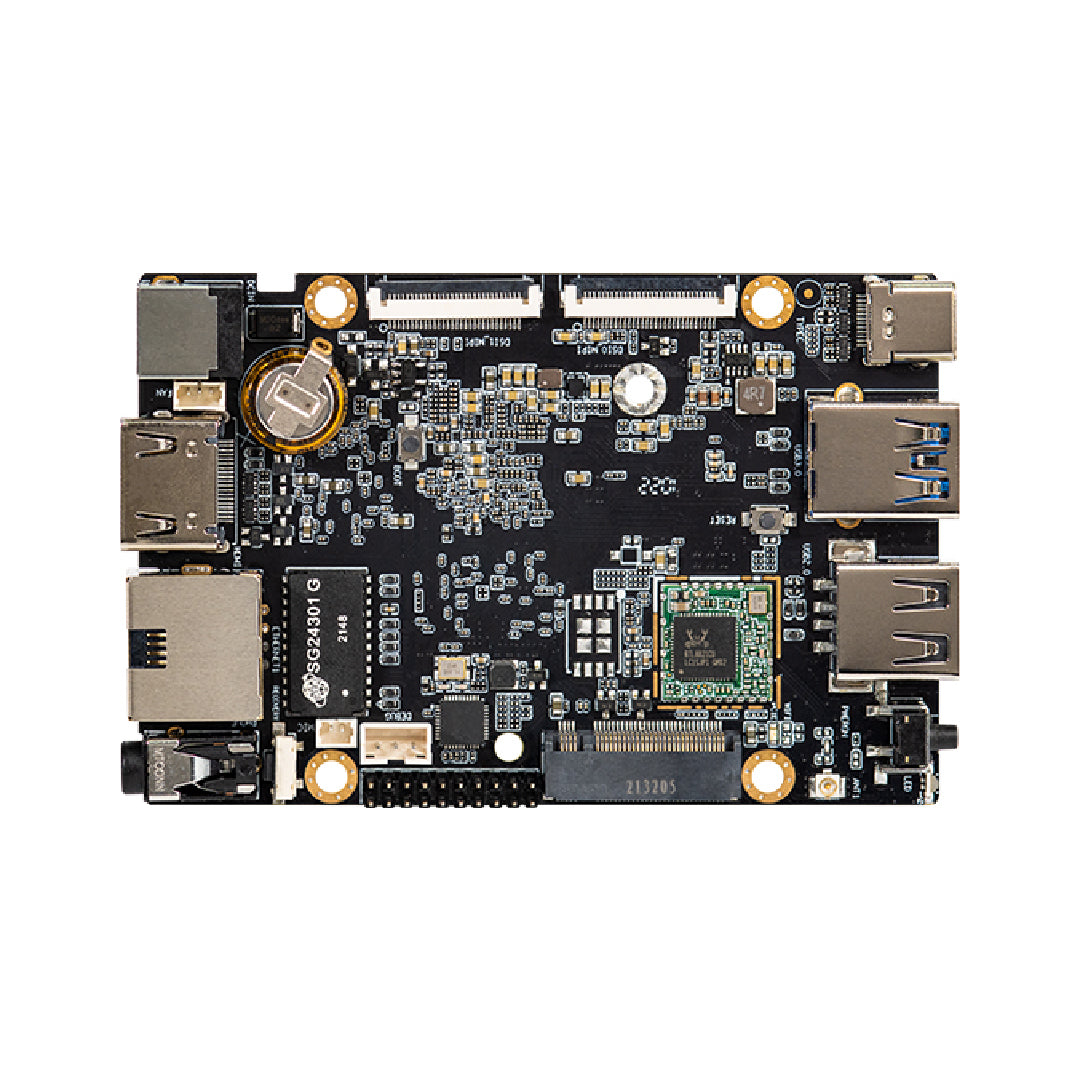

ROC-RK3588S-PC 8-Core 8K Al Mainboard
Powered by Rockchip RK3588S new-gen 8-core 64-bit processor, the main board can be configred with up to 32GB RAM. Capable of 8K video encoding and decoding, it provides abundant interfaces, supporting NVMe SD expansion; It supports various operating systems. This mainboard can be used in edge computing, Artificial Intelligence, cloud computing, VR and AR.

RK3588S
A new generationof high-end processor RK3588S is Rockchip's new -gen flagship AloT SoC with 8nm lithography process. Equipped with 8-core 64-bit CPU, it has frequency up to 2.4GHz. Integrated with ARM Mali-G610 MP4 quad-core GPU and built-in Al accelerator NPU. it provides 6Tops computing power and supports mainstream deep learning frameworks. The powerful RK3588S can deliver more optimized performance in various Al application scenarios. of high-end processor
RK3588S is Rockchip's new -gen flagship AloT SoC with 8nm lithography process. Equipped with 8-core 64-bit CPU, it has frequency up to 2.4GHz. Integrated with ARM Mali-G610 MP4 quad-core GPU and built-in Al accelerator NPU. it provides 6Tops computing power and supports mainstream deep learning frameworks. The powerful RK3588S can deliver more optimized performance in various Al application scenarios.

8K video encoding and decoding
The mainboard supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding, and also supports encoding and decoding simultaneously - up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding can be achieved. The strong video encoding and decoding capability makes 8K HD display and delicate picture quality available.

Super-large 32GB RAM
Up to 32GB of super-large RAM can be configured, which exceeds the limit of the previous RAM and delivers a faster response speed. It can meet the application requirements of products with large RAM and large storage.

Multi-channel input and output
It supports HDMI 2.1 8K video output, US8-C (DP1.4) and dual MIPI-DSI multi-channel video output - up to four-screen output with different displays can be achieved. Dual MIP|-CSI camera input is also supported.

Strong network communication capability
On-board 1000Mbps RJ45 Ethernet. 2.4GHz/5GHz dual-band WiFi and Bluetooth 4.2 are supported. This powerful network communication capability makes data transmission more stable and faster.

NVMe SSD, Massive capacity
The on-board M.2 PCIe2.0 (1Lane) interface can be connected with 2242 NVMe SSD mass storage devices, which makes it a reality that the device can be easily expanded with 1B storage capacity.

A variety of interfaces
MIPI-DSI, MIPI-DSI1, MIPI-DSIO, HDMI2. 1, USB3.0, USB2.0, USB-C, M.2 PCIe2.0 and GbE are configured.

Support various operating systems
Android 12.0, Ubuntu Desktop version and Server version, Debian11, Buildroot, Kylin and US are supported. It sup- ports RTLinux, delivering excellent real-time performance. UEFI Boot is also available.

Abundant resources
SDK, tutorials, tech docs and dev tools are provided, making development simpler and more convenient.

A wide range of applications
The mainboard can be widely used in edge computing, Artificial Intelligence, cloud computing, VR/AR, blockchain, smart security, smart home, intelligent retail and smart industry
