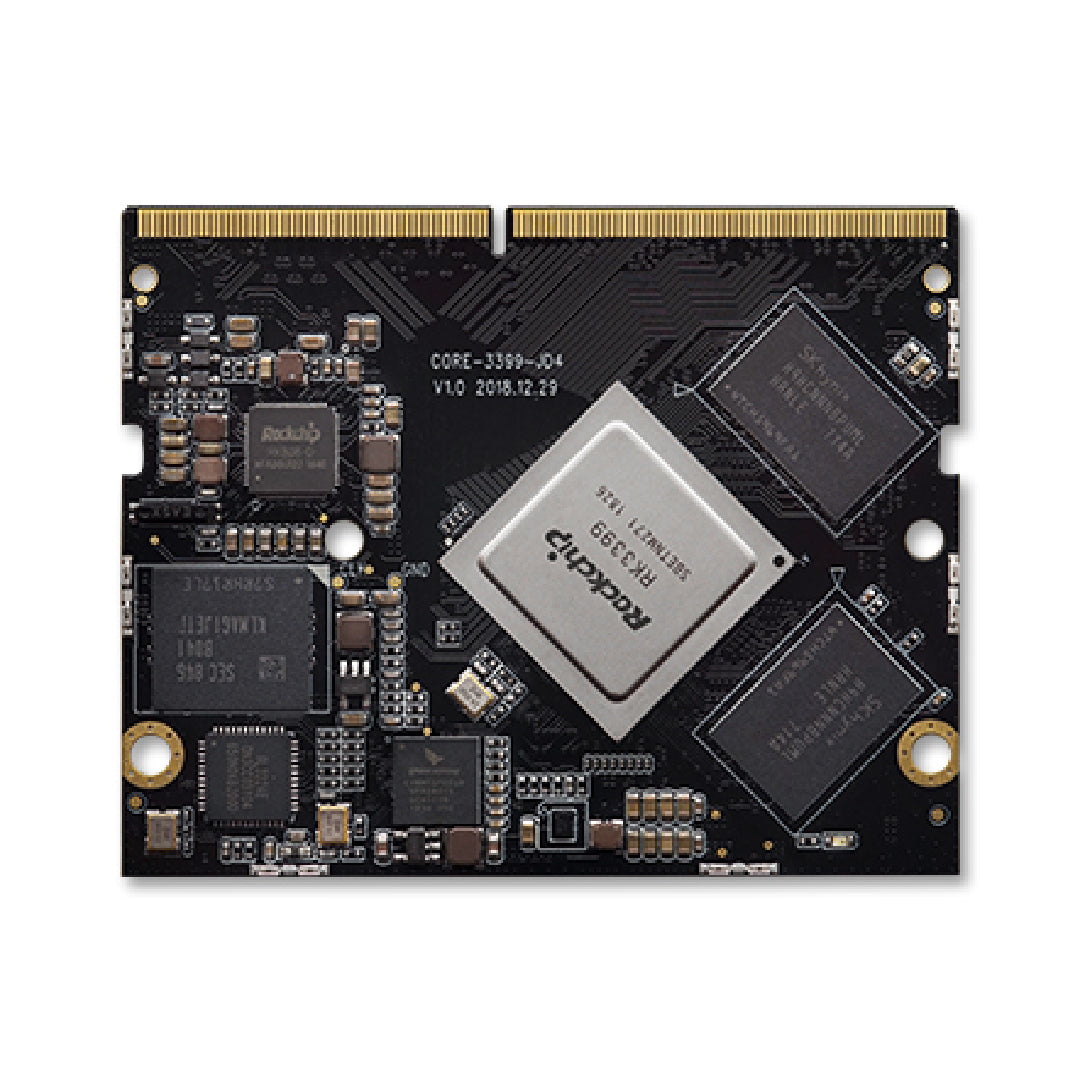

Core-3399-JD4 - Six-core High-performance Al Core Board

Six-core High-performance Al Core Board
Adapts Rockchip high-performance six-core 64-bit processor RK3399, onboard Al neural network processor NPU SPR2801S, with high computing capacity, ultra-high performance, powerful hardware decoding ability and rich extended interfaces. It can be flexibly applied to cluster server, computer vision, commercial display equipment, etc.

Six-core 64-bit High-performance Processor
Adapts RK3399 six-core 64-bit (A72x2+A53x4) high-performance processor, frequency up to 1.8GHz, integrated quad-core ARM high-end GPU Mali-T860. Provide a variety of storage configuration options, users only need to expand the function backplane to quickly achieve project development.

Al Neural Network Processor NPU
Onboard Al neural network acceleration chip SPR2801S, adopts Al special architecture APiM, its computing capability up to 2.8 Tops, 9.3 Tops/W ultra-high efficiency. It can be used in the application domain of low energy consumption and high computing performance products.

Powerful Hardware Decoding Capability
Supports dual LVDS, EDP, HDMI, DP1.2 multiple display output interfaces, dual-screen identical display/dual-screen differential display, supports 4k VP9, 4K 10bits H265/H264, 1080P (VC-1, MPEG- 1/2/4, VP8) multi-format video decoding, and 1080P (H.264, VP8) video coding.

Stable And Reliable

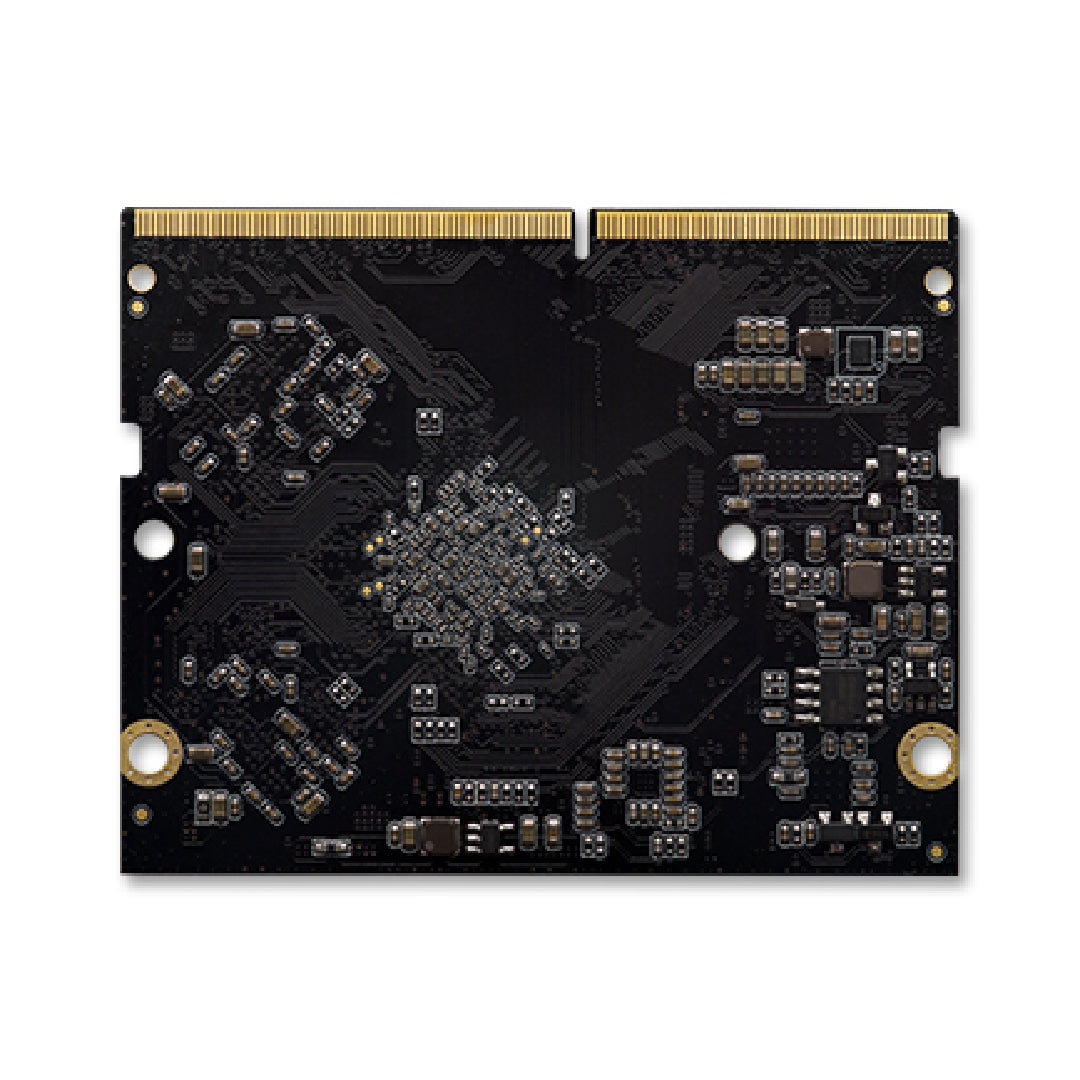

With SODIMM 260P interface, the data transmission and expansion performance can be best achieved, immersion gold process pin, corrosion resistant, 2 studs fixed, stable and reliable. Designed measurement is only 69.6mmx 55mm for saving more precious space.

Rich Extension Interfaces
With rich interfaces such as I2C, SPI, UART, ADC, PWM, GPIO, PCle, USB3.0, I2S (supports 8-way digital microphone array input), and so on.

Support For Multiple OS
Supports Android, Linux+QT, Ubuntu multiple operating system, the performance is stable and reliable

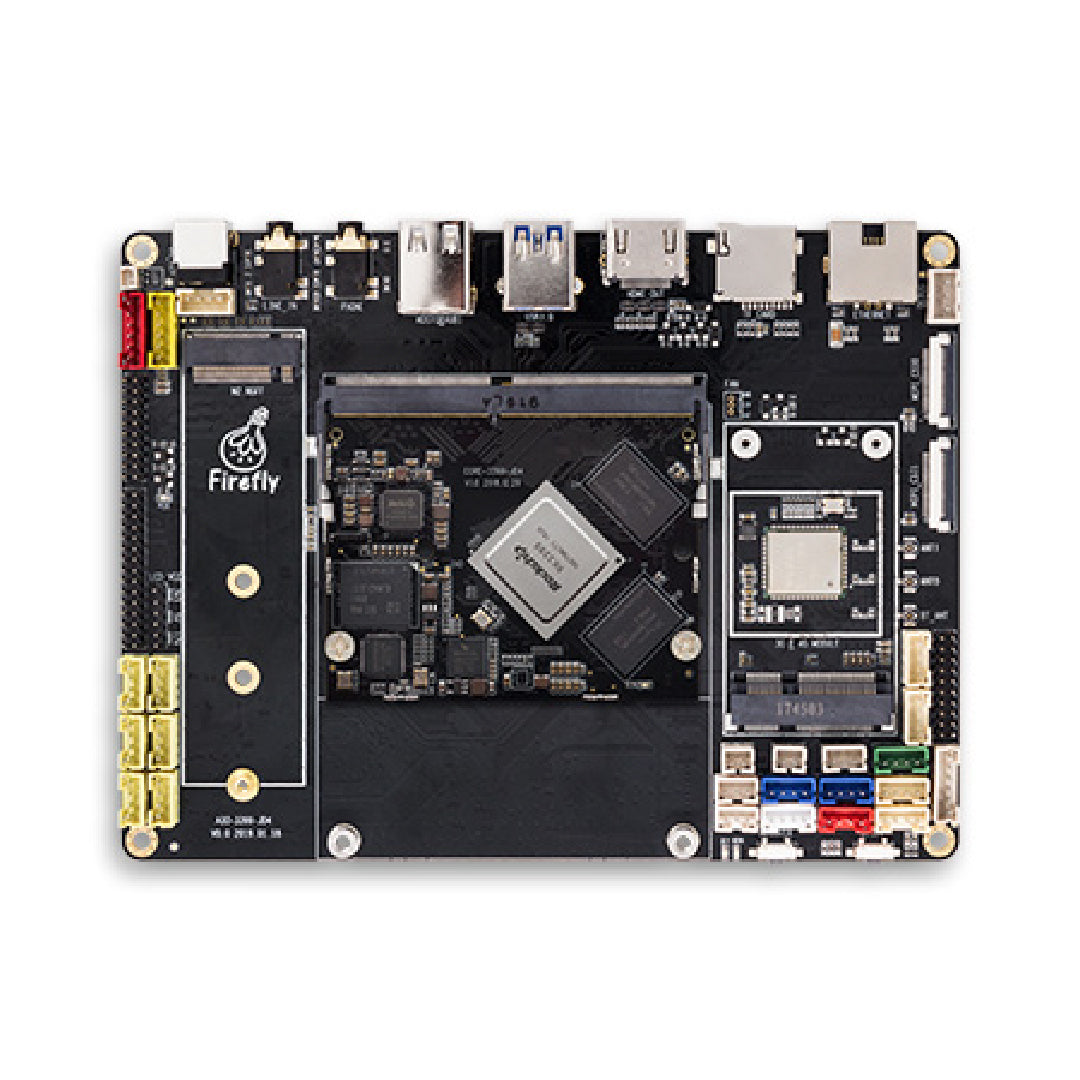

High-performance Industry Backplane
Core-3399-JD4 core board can be combined with the backplane to form a complete high-performance industry application mainboard, the expansion interfaces are richer, the performance is more powerful, the mainboard can be directly applied to a variety of intelligent products to accelerate products development.

Application
Core-3399-JD4 is suitable for cluster servers, high-performance computing/storage, computer vision, gaming equipment, commercial display equipment, medical equipment, vending machines, industrial computers, etc.
