EC-A3399ProC Six-core 64-bit Al Embedded Computer

EC-A3399ProC Six-core 64-bit Al Embedded Computer
Based on AIO-3399ProC Al open-source platform, industrial-grade metal case and fanless design configured, with high-efficiency heat dissipation ability, supports for multiple operating systems which can run stable and reliable. EC-A3399ProC has ultra-strong Al performance and rich expansion interfaces, which can be applied to various intelligent products easily.

RK3399Pro Six-core 64-bit Processor
Rockchip RK3399Pro processor adopts the architecture of dual-core Cortex-A72 and quad-core Cortex-A53 with its frequency up to 1.8GHz, showing an ultra-strong generatl-purpose computing performance. Quad-core ARM high-end GU Mali-T860 integrates more bandwidth compression techniques and therefore has an excellent overall performance.

NPU With Ultra-strong Al Performance
CPU internally integrates Al neural network unit NPU and supports 8bit/16bit operation with its computing performance up to 3.0TOPS. Compared with using the traditional GPU as the large chip scheme of Al computing unit, the power consumption of NPU is merely 1% of that of GPU. Therefore, NPU has an extremely high computinq-power performance ratio.

With Rich Al Capability
It provides Rock-X SDK Al visual recognition API component library to realize machine vision recognition quickly, supports TensorFlow/Caffe/Mxnet general-purpose model and provides Al development tools like model transformation and end-to-side API. It also supports the development interfaces of Android NN API, RKNN cross-platform API and TensorFlow.

Powerful Hardware Decoding Capability
It has powerful hardware decoding and encoding capability, supports 4K VP9, 4K 10bits H265/H264 and 1080P multi-format (VC-1, MPEG-1/2/4, VP8) video decoding, supports 1080P (H.264/VP8 format) video encoding.

Support Multiple OS
With stable and reliable performance, EC-A3399ProC supports multiple operating systems including Android, Linux+QT and Ubuntu.

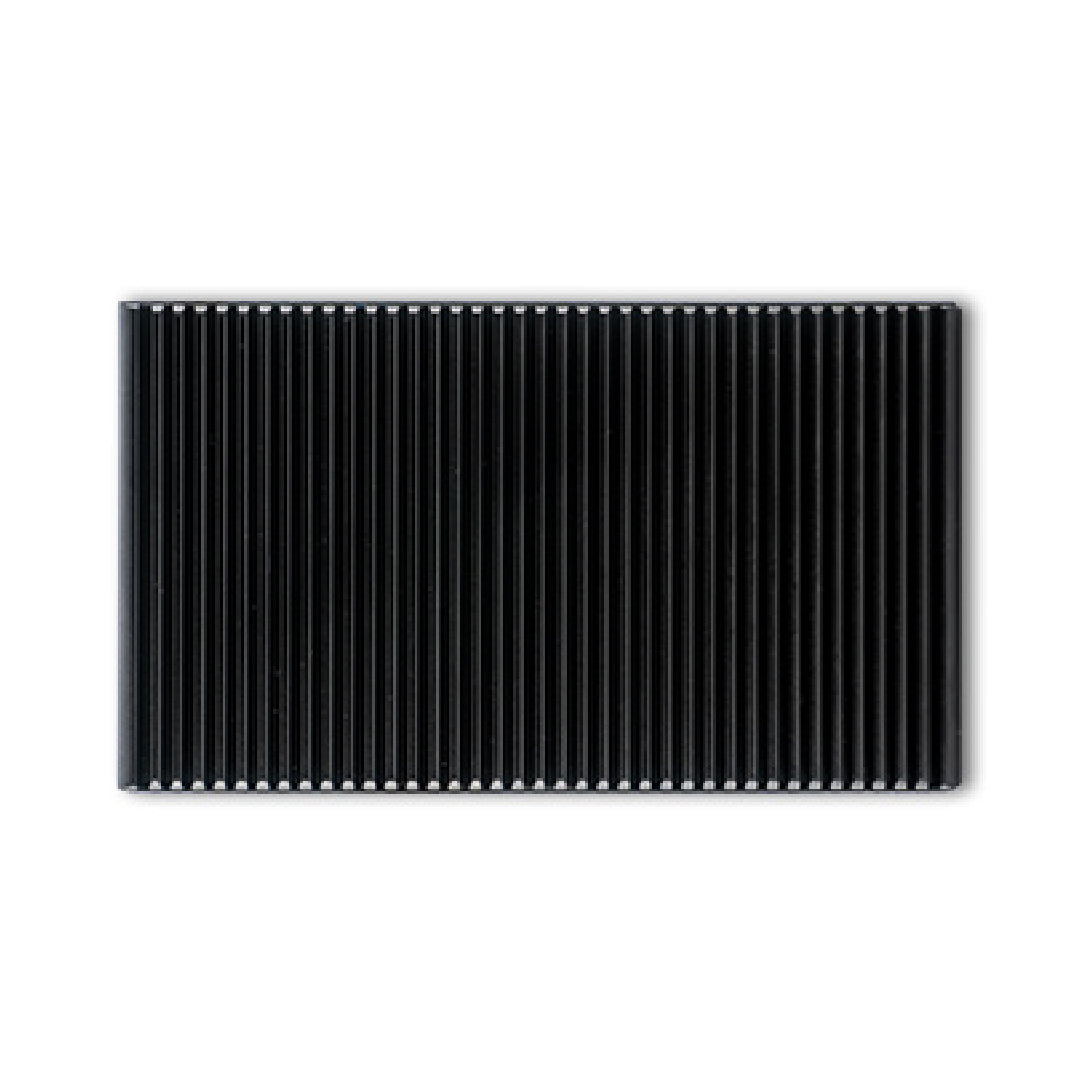

Configuring Metal Case
High-quality metal case and fanless design configured, with the concealed lead hole, heat-conducting aluminum alloy structure for high-efficiency heat dissipation, It can support 60°Chigh-temperature aging and stable operation for 7x24 hours.

Open SDK
Open SDK, tutorials, technical materials and development tools to make development easier and more convenient.

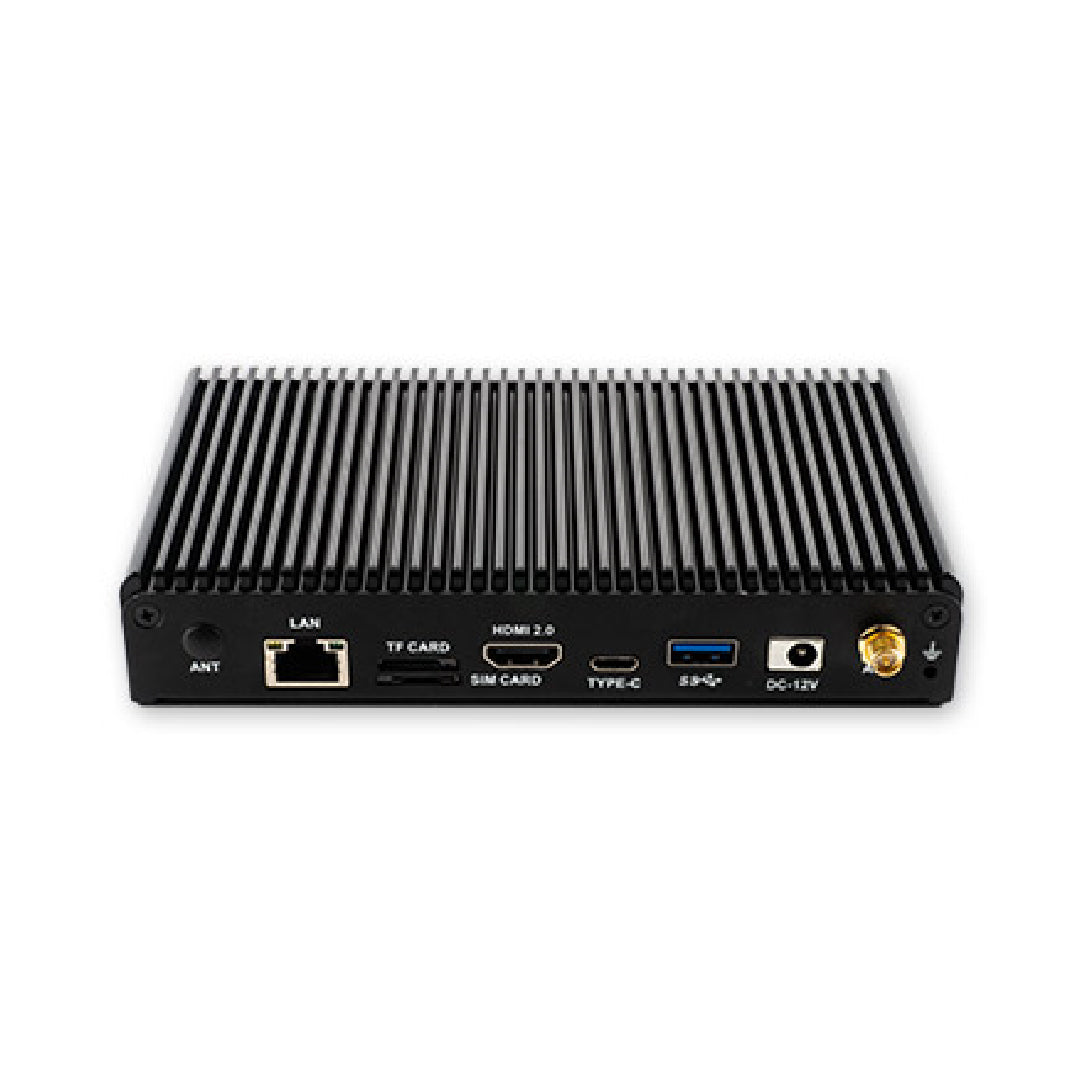

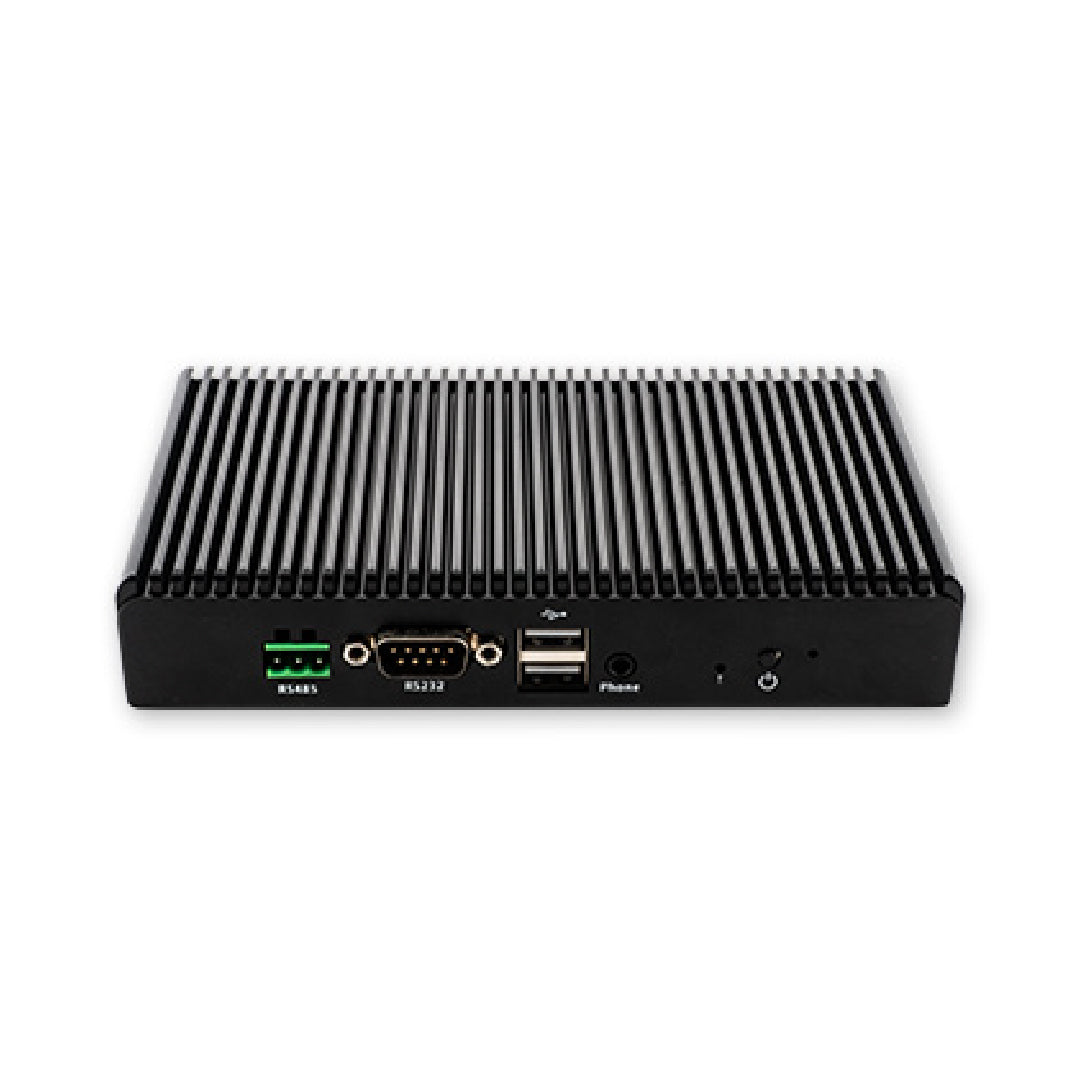

Rich Expansion Interfaces
HDMI2.0, R$485, RS232, USB3.0 Host, Type-C (USB3.0+DP) and other interfaces owned to make it possible to be widely applied in various industries.

Application
EC-A3399ProC can be used for Al driving monitoring, Industrial computer, Al server, Self-service retail shelves, Face-scanning payment devices, Face recognition, Vending machine, Smart education, etc.
