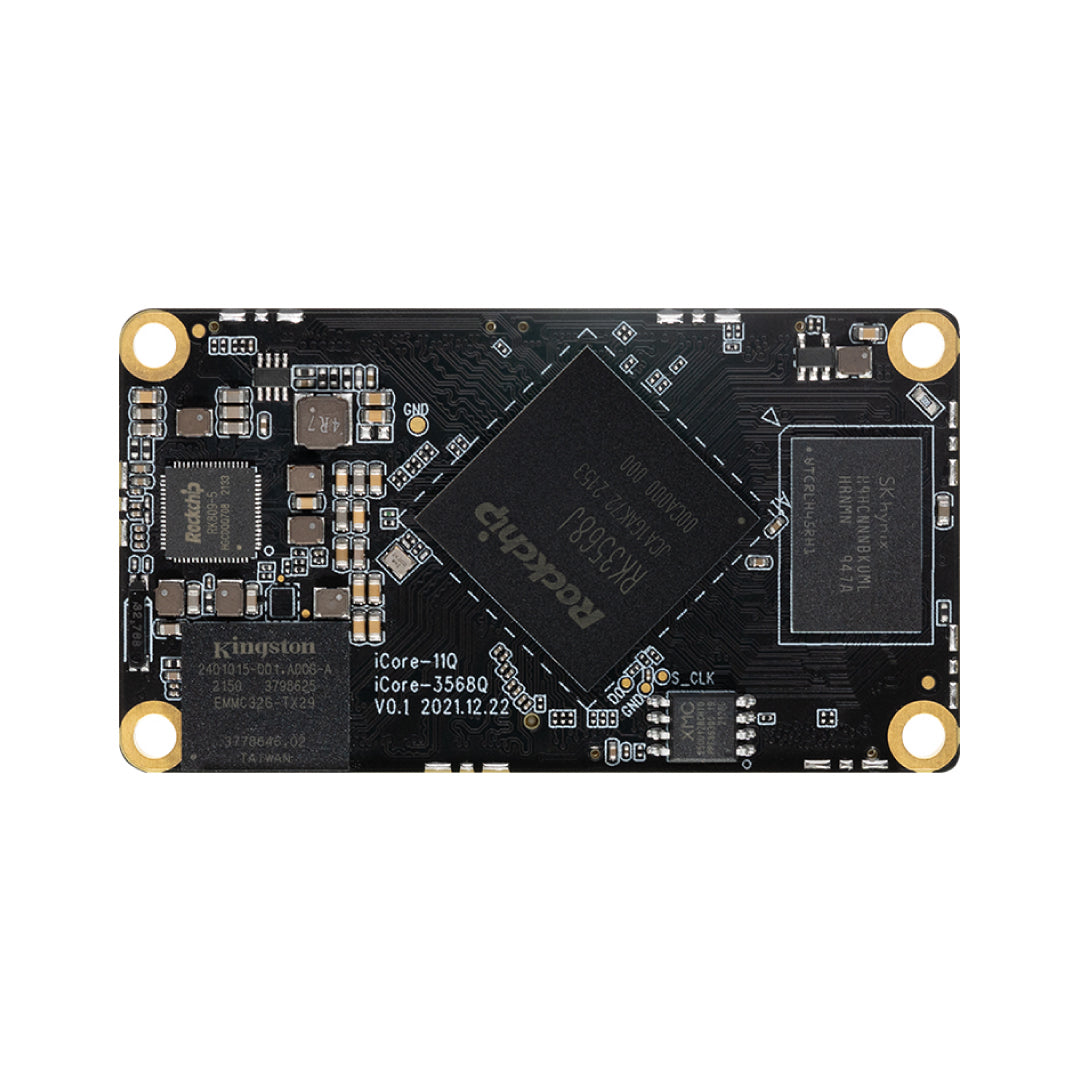

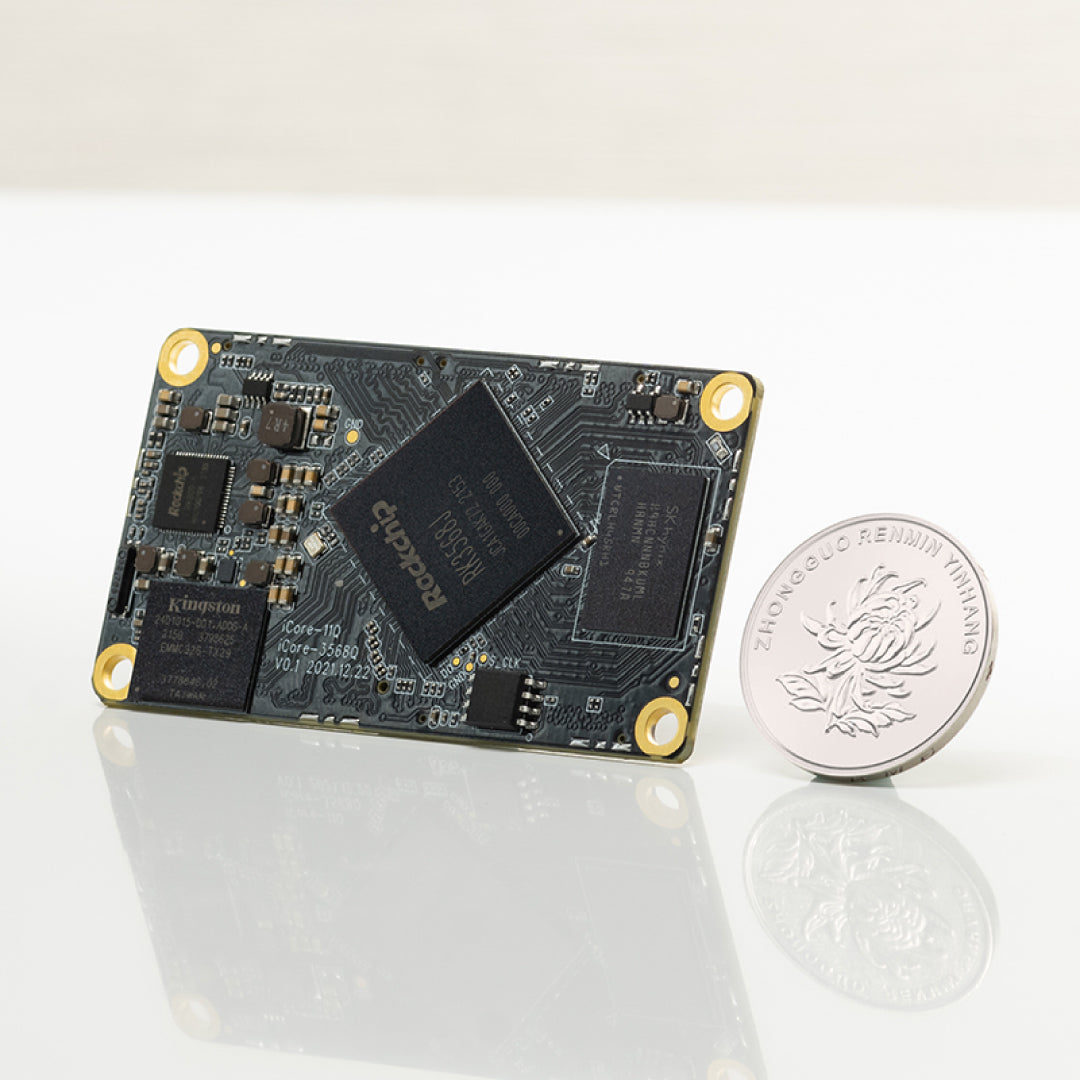

icore-3568JQ - Quad-Core Industrial Core Board

¡Core-3568JQ Quad-Core Industrial Core Board
Equipped with RK3568J quad-core 64-bit industrial-grade processor, the core board supports up to 8GB RAM. It supports WiFi 6, 5G/4G and other high-speed wireless network communications, and BB port provides more powerful transmission. With industrial-grade stability, it delivers long and stable operation between -40°C and 85°C. Backplane reference design and other open resources are provided for users
to make further customization.

RK3568J industrial-grade processor
The quad-core 64-bit Cortex-A55 processor, with 22nm lithography process, has frequency up to 2.0GHz, delivering efficient and stable performance for data processing of back-end equipment. There are a variety of storage options, allowing customers to quickly implement the research and production of products.

8GB large RAM, all-data-link ECC
It supports up to 8GB RAM, with up to 32Bit width and frequency up to 1600MHz. It supports all-data-link ECC, making data safer and more reliable, and meeting the requirements of running large-memory products.

Integrated co-processors
GPU VPU NPU It is integrated with dual-core GPU, high-performance VP and high-efficiency NPU. The GPU supports OpenGL ES3.2/2.0/1.1, Vulkan1.1. The VPU can achieve 4K 60fps H.265/H.264/VP9 video decoding and 1920x1080@60fps H.265/ H.264 video encoding. The NPU supports one-click switching of mainstream frameworks like Caffe/TensorFlow.

Various display interfaces, dual cameras supported
With MIPI-CSI x2, MIP|-DSI x2, HDMI2.0 and EDP video interface, it can support up to three screen output with different display. The built-in 8M ISP supports dual cameras and HDR. Video input interface can be connected to an external camera or multiple cameras. The board can be used in NVR, intelligent terminal, multimedia advertising player, etc.

Powerful network communication
It is integrated with PCle3.0, GMAC Ethernet controller, SDIO3.0 interface, and can be extended to multi-channel Gigabit Ethernet, WiFi 6/Bluetooth, 5G/4G LTE, enabling higher-rate communication.

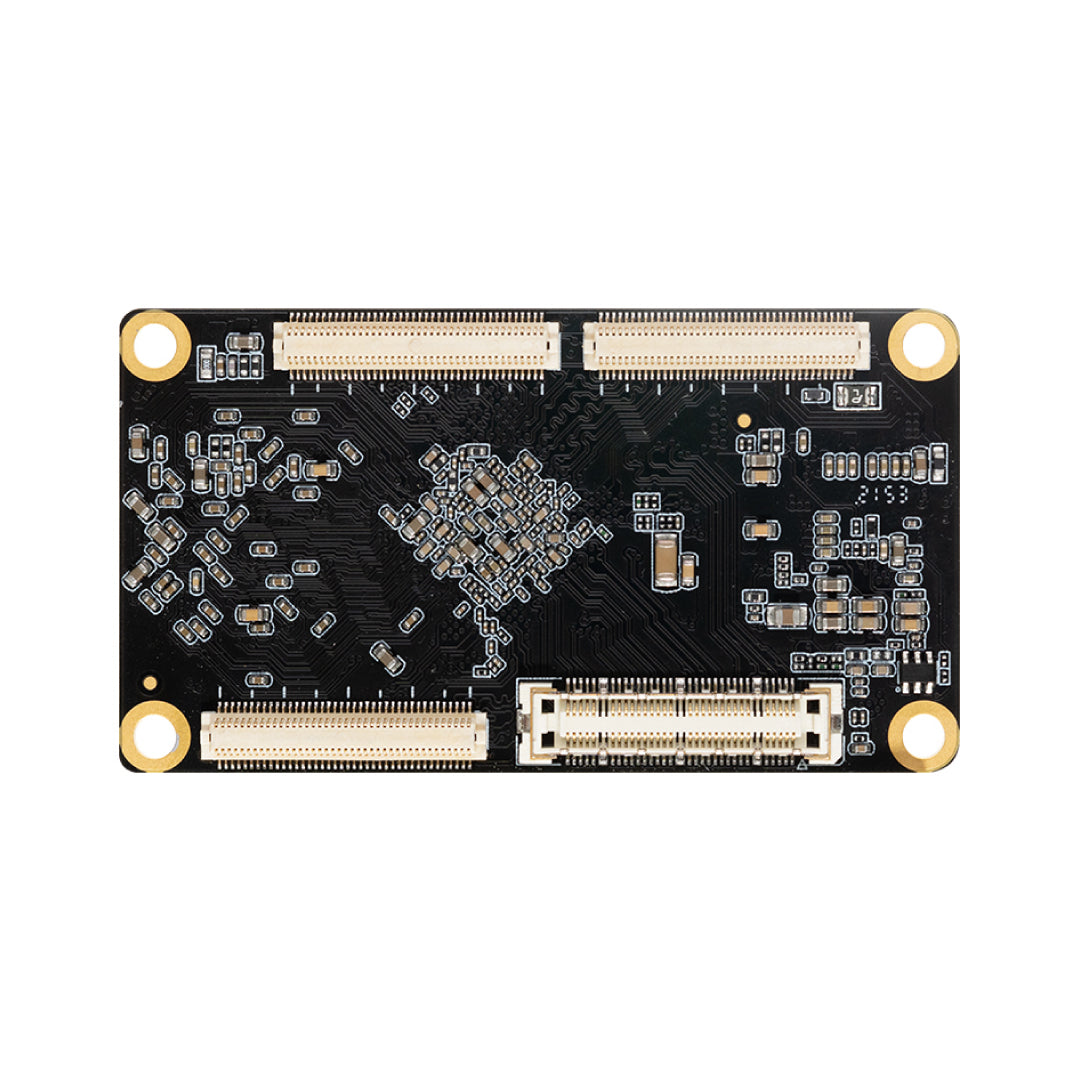

Firm and tight BTB port
The core board is equipped with BTB port, which is smaller in size, enabling more convenient to connect to the backplane; and the connection is tight and firm, which is convenient for the design and mass production of industrial products.

Wide-temperature stable operation
It is made of strictly selected industrial-grade processor and components, so it can provide 7x24h continuous and stable operation in harsh operating environments regardless of it is as low as -40°C or as high as 85°C, satisfying the industrial-grade needs.

Packed with more ports
PCIe3.0, SATA, MIPI CSI, MIPI DSI, eDP, 12C, GPIO, USB3.0, USB2.0, SDMMC and other interfaces are configured.

Backplane reference design is provided
Backplane reference design and complete technical information are provided, so users can efficiently proceed secondary development to quickly create independent and controllable products.

Android and Linux are supported
Android 11.0, Ubuntu Desktop version and Server version are supported. And it also supports RTLinux, delivering excellent real-time performance. The stable and reliable operation provides a safe and stable system environment for product research and production.

Abundant resources
SD, tutorials, tech docs and dev tools are provided, making development simpler and more convenient.

A wide range of applications
This core board can be widely used in smart NVR, cloud terminal, loT gateway, industrial control, edge computing, face recognition gate, NAS, vehicle center console, etc.
