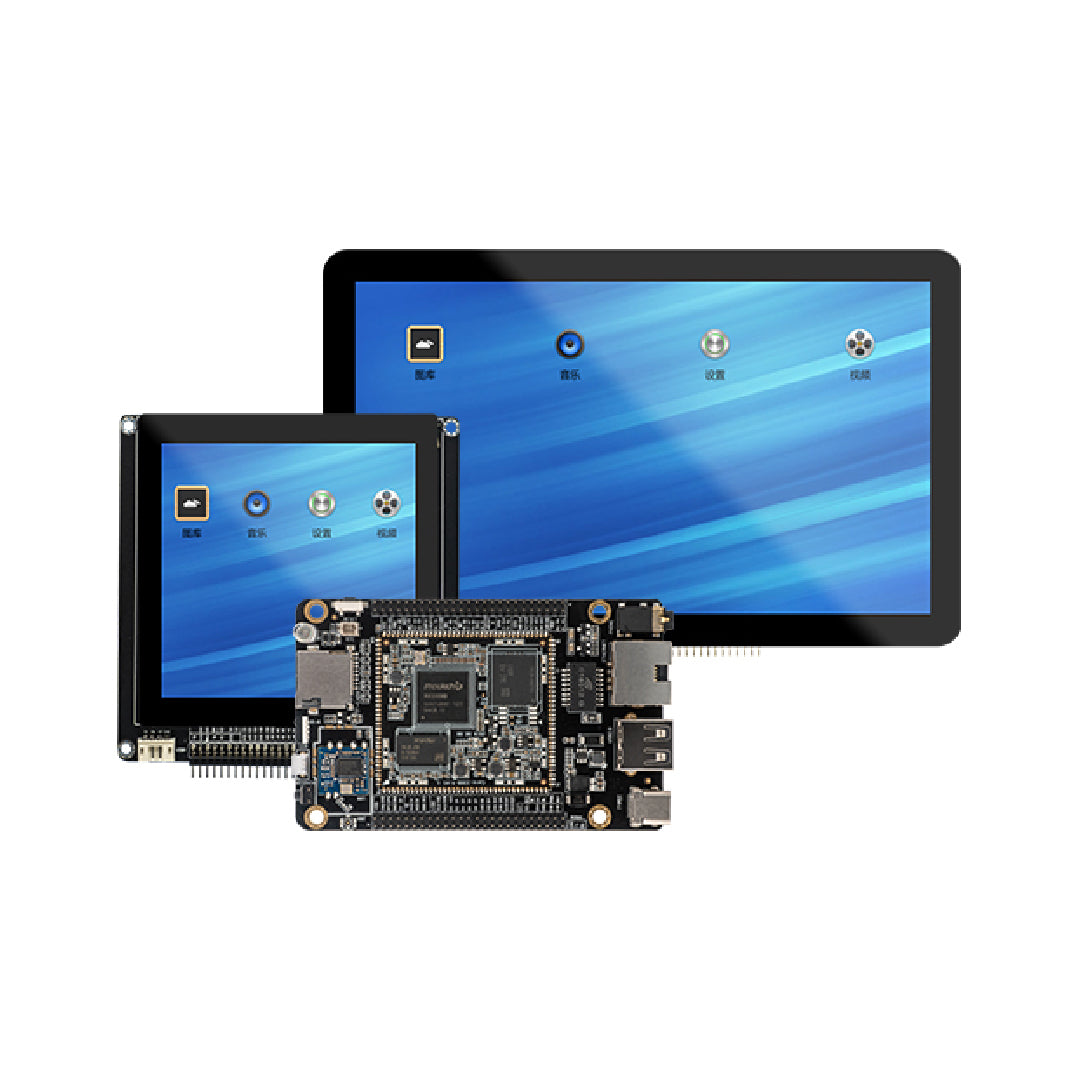

Intelligent IoT Development Kit

The micro IoT main board with a high-resolution display is combined into a high-performance intelligent IoT development kit that supports various IoT systems, audio systems and services, and Buildroot+Qt application development.

Intelligent loT Development Kit
The micro loT main board with a high-resolution display is combined into a high-per-
formance intelligent loT development kit that supports various loT systems, audio
systems and services, and Buildroot+Qt application development. With rich expansion
interface, it can be quickly applied to intelligent loT, intelligent Automatic Speech Rec-
ognition (ASR), Human Machine Interaction(HMI), industrial control, intelligent robot, etc.

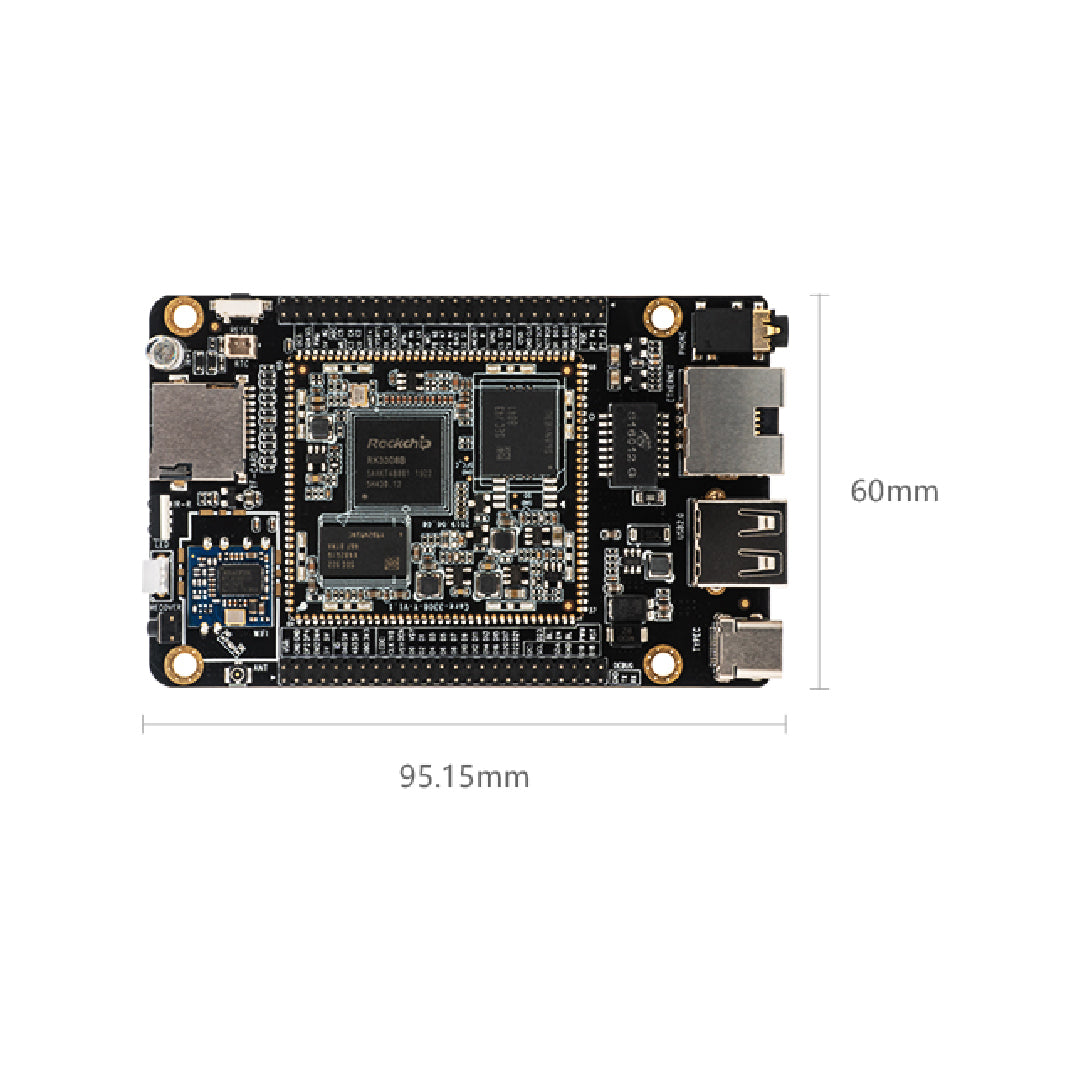

Ouad-core 64-bit loT Processer
A special loT processer for RockChip RK3308B, based on ARM quad-core 64-bit Cortex-A35 kernel, 1.3GHz frequency, and integrated high-performance Codec and Hardware VAD, directly supports at most 8-channel analog MIC array.

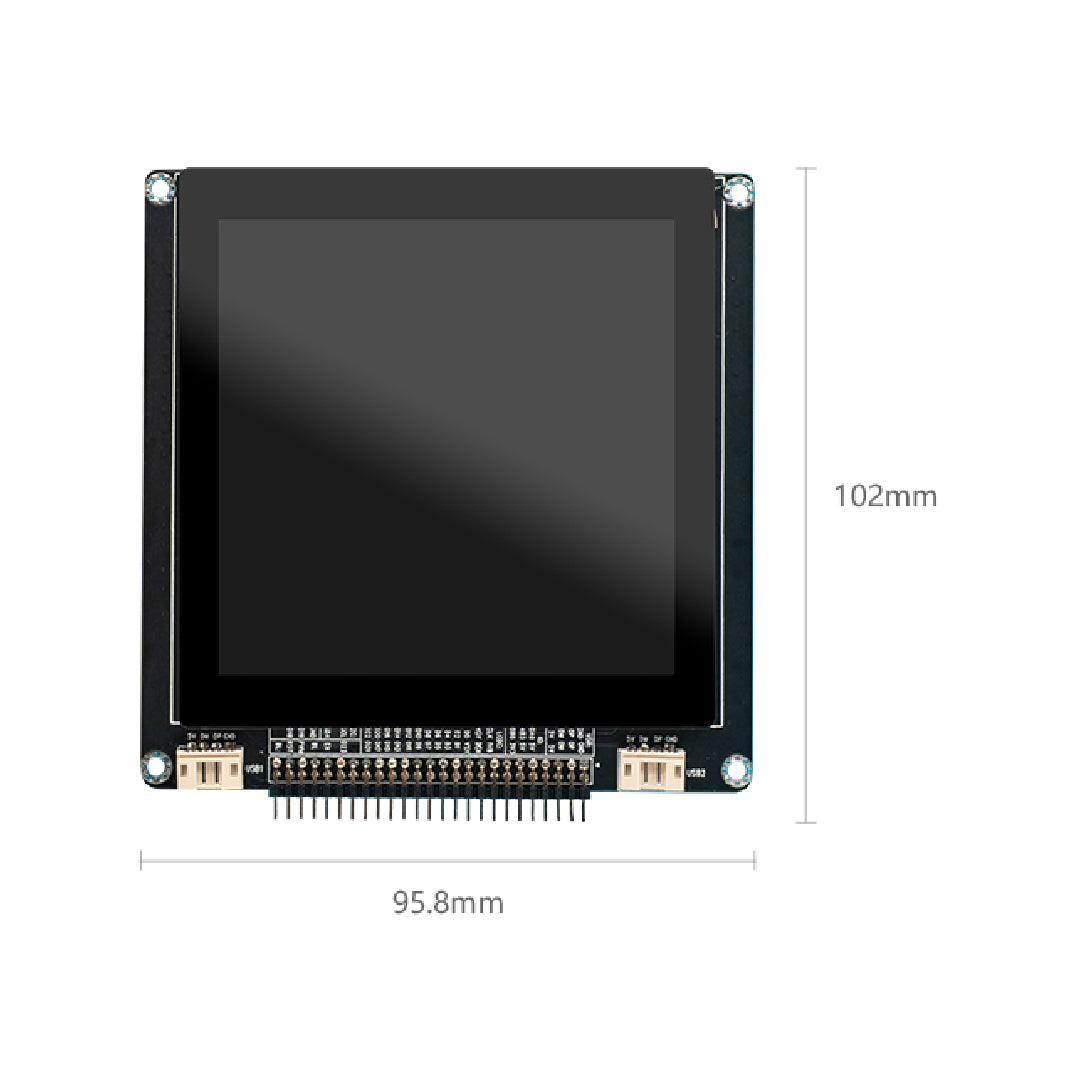

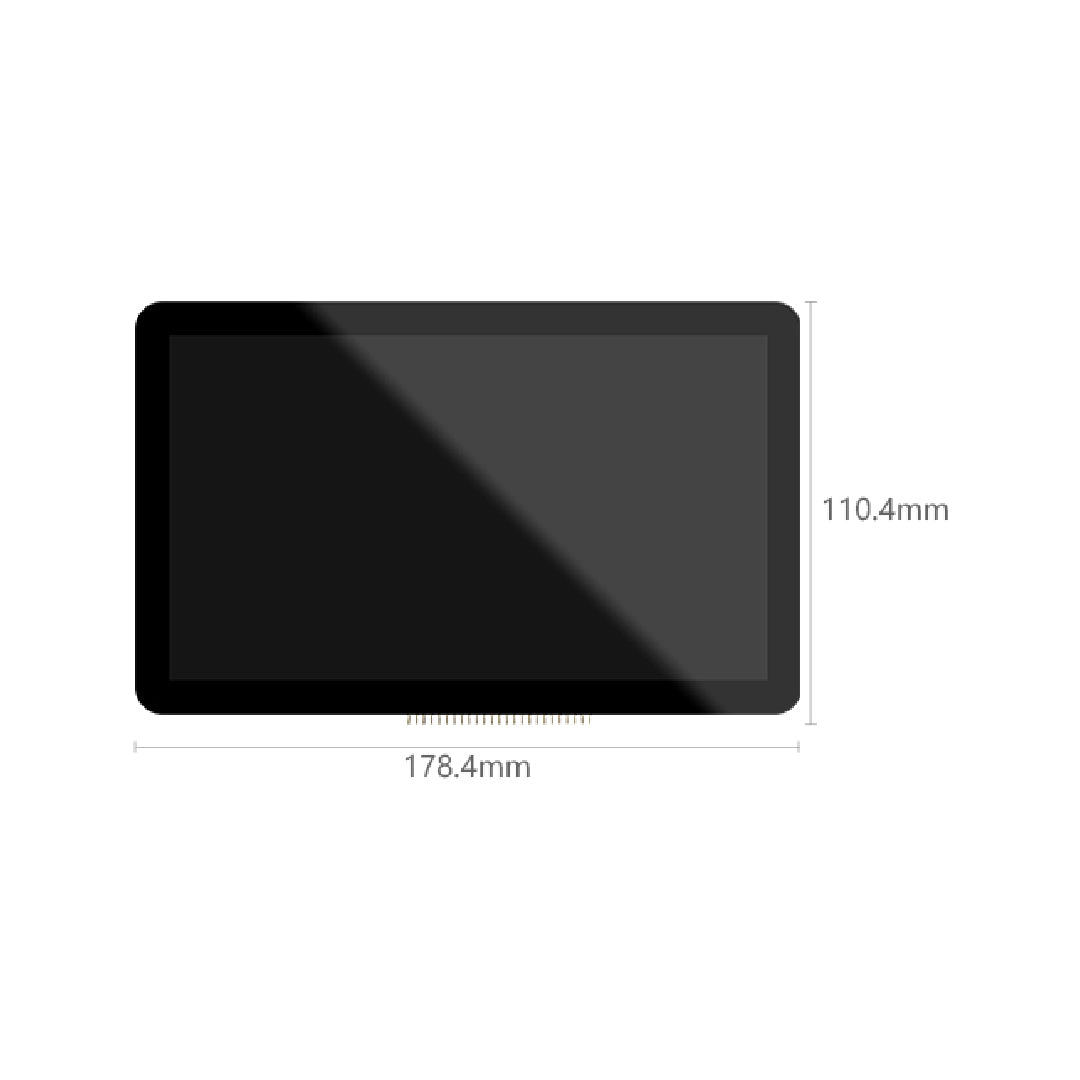

Powerful Display Capability
It with powerful display drive capability and can support up to 1024*720 resolution, suitable for HMI, smart home, AIOT and other screen display applications.

Support loT Systems And Services
It can support a variety of voice systems and services, such as Buildroot (Linux/QT) embedded system, ROS(Robotos), and iFLYTEK, Amazon Alexa. Rich operating systems/services support can use for loT, intelligent speech recognition and other products easily.

Buildroot+QT Application Development
It can support Buildroot + QT application development. The open source QT application program provided by the SDK includes music application (supporting various audio formats, such as mp3, wav, ogg, etc.), video application (supporting various video formats, such as mp4, avi, flv, etc.), picture application, and setting application (various control functions: WiFi/Bluetooth connection, volume, brightness adjustment, language switch)

Voice Intercom
Not limited by transmission distance, keep the call in the place with network, realize functions such as sensitive word filtering and the automatic storage of call recording. It widely used in fields such as finance, education, transportation, medical treatment, etc.

Voice Intercom
Not limited by transmission distance, keep the call in the place with network, realize functions such as sensitive word filtering and the automatic storage of call recording. It widely used in fields such as finance, education, transportation, medical treatment, etc.

Open SDK
Equipped source code, tutorial, technical materials, and development tools are provided, making development easierand more convenient.

Application
Widely used in scenes such as loT, intelligent voice interaction, audio input or output, etc.
